TRON

Tron is a new paradigm design its take urban street lighting mainstream to a new benchmark in visual comfort.
it's a best groundbreaking creation that delivers unparalleled design freedom.
  • IP66
  • IK08
  • Meets CE safety standards, Rohs compliant
  • CB
  • IECEE
TRONTRON
Datasheet
Drawing
Photometric
General Specifications
Application
Pathway, Garden Roads, Park Lighting, Road Lighting
Product Type
Landscape Lighting
Notes
On/Off Built-in driver Included as a standard, 0-10 and DALI dimmable Driver as an optional.
Available 3 hours emergency kit as an optional.
Technical Data
Mounting
Post-top Mount
Material
Die-cast aluminum
Body Color
Matt gray, Silver
Finish
Super resistance to corrosion
Diffuser
Clear glass
IP Protection
IP66
Ambient temperature
Ta= max 45°C
Storage temperature
-20°C to 45°C
Dimensions
Diameter (mm)
Φ500
Height (mm)
235
Optical Data
Wattage
24W, 60W, 40W
Light Distribution
T1, T90
Color Temperature (CCT)
2700K, 3000K, 4000K, 6500K
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Driver/Transformer
Included
Driver Mounting
Integrated
Control
On/Off

Ordering Code

CodeDimensions (mm)WattageDelivered Output (lm)CCT (K)
RAY- TRON- URB-PT- IP66- 24W- 00Φ500*235mm24W4800-60002700,3000,4000,6500
RAY- TRON- URB-PT- IP66- 60W- 00Φ500*235mm60W7050-81302700,3000,4000,6500
RAY- TRON- URB-PT- IP66- 40W- 01Φ500*235mm40W50002700,3000,4000,6500
Ambient image

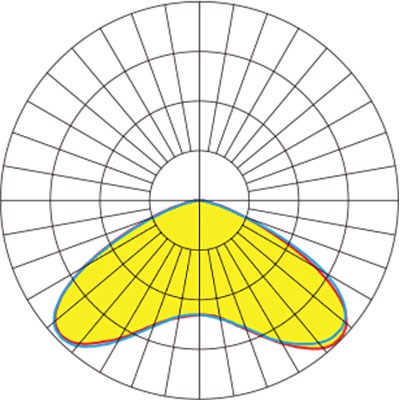

Photometric
