Home / Products / Outdoor / Landscape Lighting / ELBA

ELBA

ELBA is outdoor wall fixture for uplighting and downlighting.
Structure material: High purity aluminium.
Structure finish: Diffuser
Material: Clear tempered glass.
  • IP65
  • Meets CE safety standards, Rohs compliant
  • CB
  • IECEE
ELBAELBA
Datasheet
Drawing
General Specifications
Application
Outdoor, Indoor
Product Type
Wall Mounted
Technical Data
Mounting
Surface Mounted, Wall Mounted
Material
Aluminium
Body Color
Black, White
Diffuser
Clear tempered glass
IP Protection
IP65
Ambient temperature
Ta -20°C - Ta +50°C
Dimensions
Diameter (mm)
Φ65
Height (mm)
160
Length (mm)
222
Width (mm)
51
Optical Data
Light Source
LED
Wattage
2x9W
Delivered Output (lm)
2050
Light Distribution
2x10°, 2x23°, 2x36°
Color Rendering Index
Ra> 80
Color Temperature (CCT)
3000K, 4000K
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Driver/Transformer
Included
Driver Mounting
Integrated

Ordering Code

CodeDimensions (mm)WattageDelivered Output (lm)CCT (K)
RAY -ELBA-UP DWN-IP65-2X9W65*160*982x9W15003000,4000

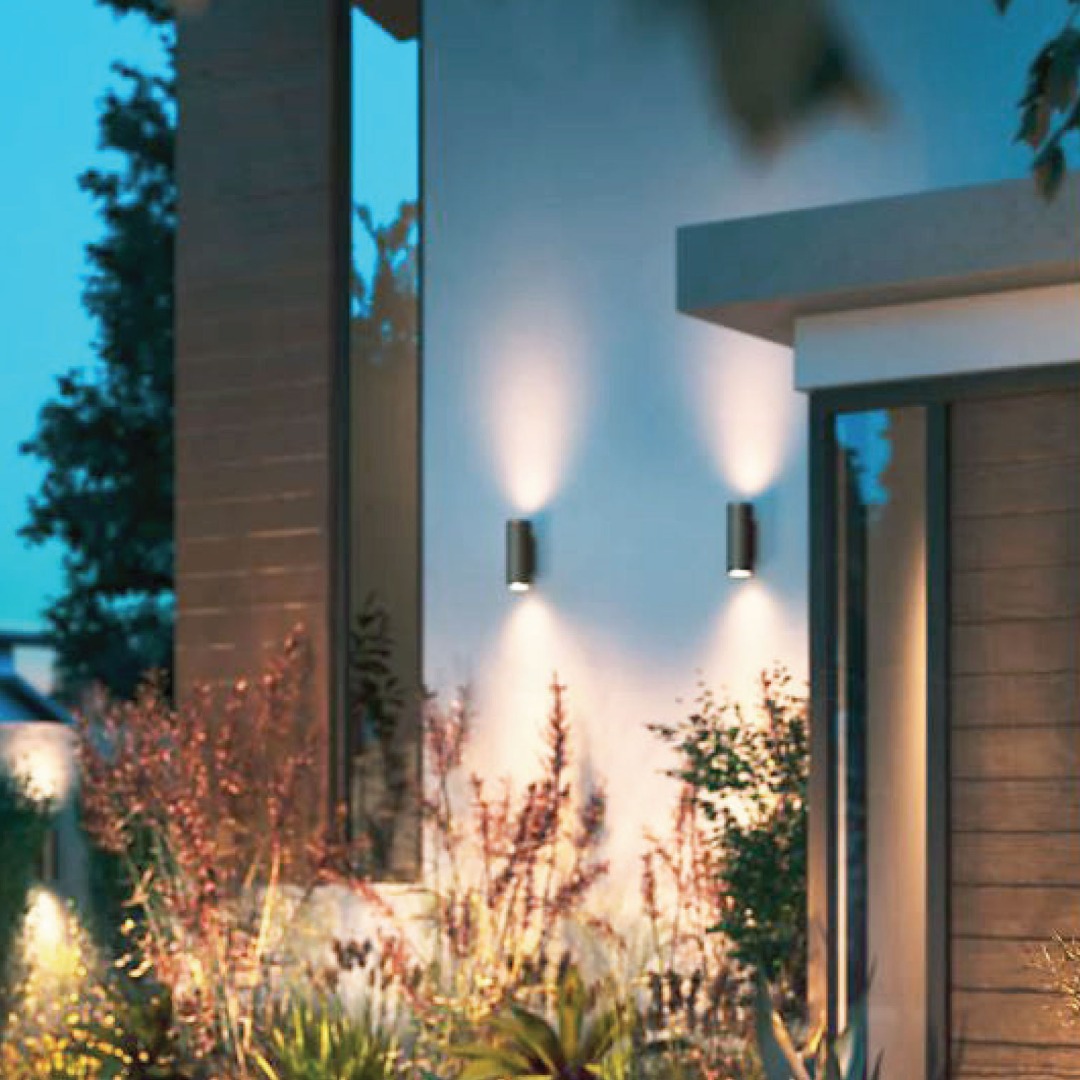

Ambient image
