HANDRAIL

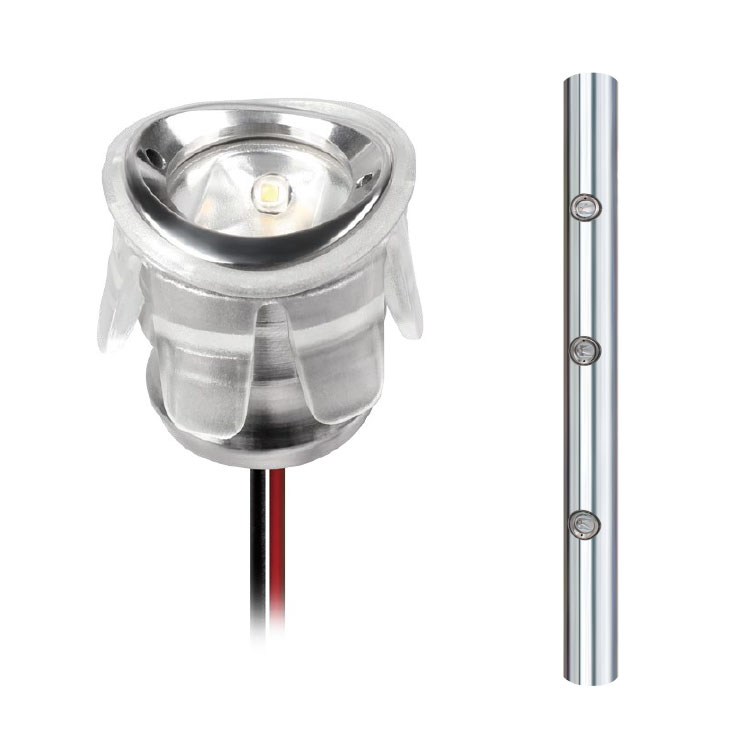

HANDRAIL is designed with stainless steel 304 housing, optics PMMA reflector with wonderful light output. It is suitable for standard handrail with ø48-60mm, and wall thickness of 1-2mm for a ø27mm hole, and With PC spring for fast recessed installation. this product is widely used in the exterior or interior handrail in multiple places, such handrail at the house, handrail in the metro, handrail in the gallery, handrail for the stair etc.
  • IP67
  • Meets CE safety standards, Rohs compliant
  • CB
  • IECEE
HANDRAILHANDRAIL
General Specifications
Application
Outdoor, Indoor
Product Type
Recessed Light

Technical Data
Mounting
Recessed Mounted
Material
Stainless steel 304 housing, optics PMMA
Diffuser
PMMA Reflector
IP Protection
IP67
Ambient temperature
Ta -20°C - Ta +50°C

Dimensions
Height
28
Diameter (mm)
Φ28.5

Optical Data
Light Source
LED
Wattage
1.5W
Delivered Output (lm)
120
Light Distribution
90°
Color Rendering Index
Ra> 80
Color Temperature (CCT)
3000K, 4000K
Average Lamp Life
>50.000hrs

Electrical Data
Input Voltage/Frequency
24V
Driver Mounting
Remote

Ordering Code

CodeDimensions (mm)WattageDelivered Output (lm)CCT (K)
RAY-HANDRAIL-28MM-2WΦ28.5*281.5W1203000,4000

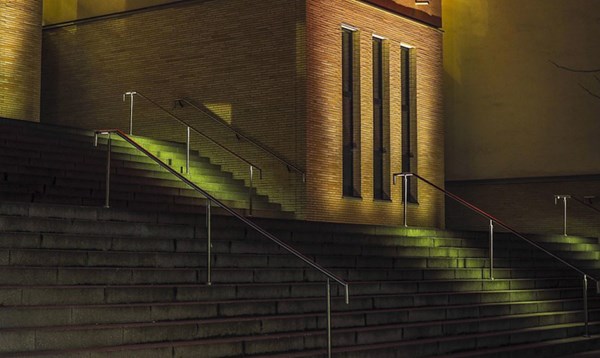

Ambient image

Photometric
