BKH 1

BKH 1 is a Modern design for wall or ceiling applications, Professional optical design for uniform light distribution, This luminaire that is ideal for corridors, communal areas or stairs.
  • IP65
  • IK10
  • Meets CE safety standards, Rohs compliant
  • CB
  • IECEE
BKH 1BKH 1
Datasheet

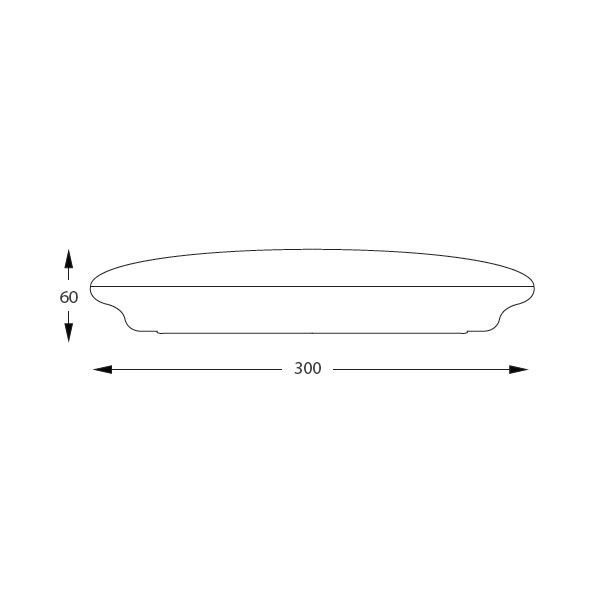

Drawing
General Specifications
Application
General Illumination, Hotels, Offices, Residential, Restaurants
Product Type
LED Ceiling Light
Notes
Changing power by Dip switch.
Available 3 hours emergency kit as an optional.
Technical Data
Mounting
Surface Mounted, Wall Mounted
Material
Polycarbonate (PC)
Body Color
White
Finish
White/White
Optics
110°
Diffuser
PMMA
IP Protection
IP65
Ambient temperature
Ta -20°C - Ta +45°C
Dimensions
Diameter (mm)
Φ300
Height (mm)
60
Optical Data
Light Source
SMD LED
Wattage
10w, 14w, 18w
Gross luminous flux (lm)
2000
Delivered Output (lm)
1800
Color Rendering Index
Ra> 80
Color Temperature (CCT)
3000K, 4000K
Power factor
>0.90
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Driver Mounting
Integrated

Ordering Code

CodeDimensions (mm)WattageGross luminous flux (lm)Delivered Output (lm)CCT (K)
RAY-BKH1-SUR DL-300MM-IP65-18WΦ300*60mm10W, 14W,18W200018003000,4000
