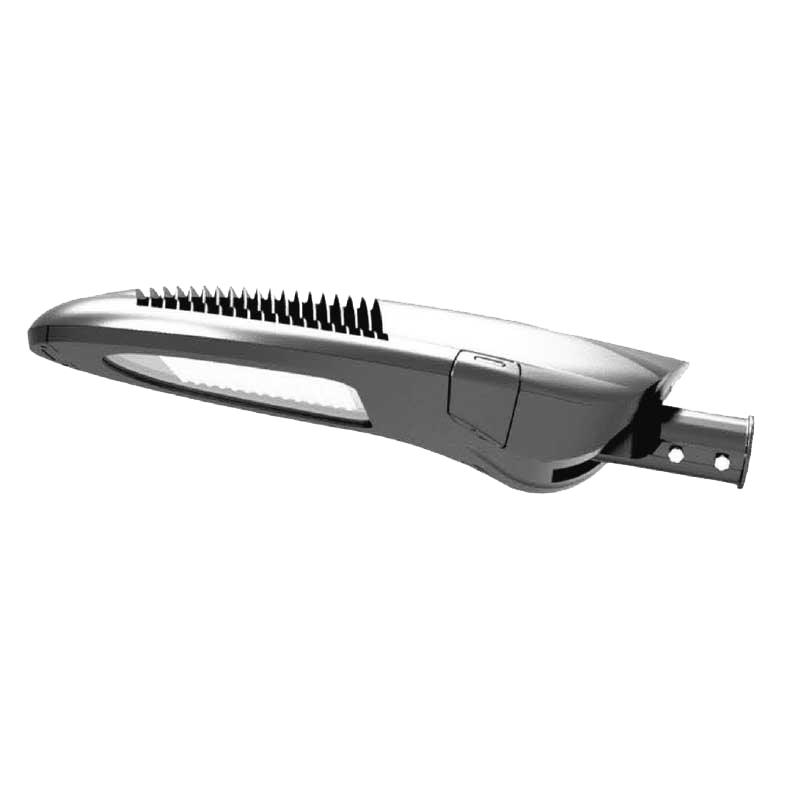

Arrow

Arrow series luminaire is the ideal lighting solution for any road, street or pedestrian area.
With its light-level efficiency, its long lifetime and its easy and limited maintenance requirements the Arrow range minimize your total loss of ownership.
Efficient system also to meet the current issues of every saving, ecological footprint and costs reduction.
Arrow create a more attractive urban living environment and visual comfort for public and residential area.
The Arrow range offers flexible combinations of LED modules, a choice of currents, dimming options and, on request, a lighting management system to maximize energy savings.
  • IP66
  • IK09
  • Class I
  • Meets CE safety standards, Rohs compliant
ArrowArrow
General Specifications
Application
Motorways, Pedestrian Area, Residential, Urban Roads
Product Type
Street Light

Technical Data
Mounting
Top and Side Entry
Material
Die-cast aluminum
Body Color
Grey
Optics
All distributions compatible with the 2x2 strada lenses from Ledil.
Diffuser
Clear tempered glass
IP Protection
IP66
Ambient temperature
Ta -40°C - Ta +55°C
Gear Access
Free tool access
Gear Tray
Removable without tool
Weight (Kg)
12.5

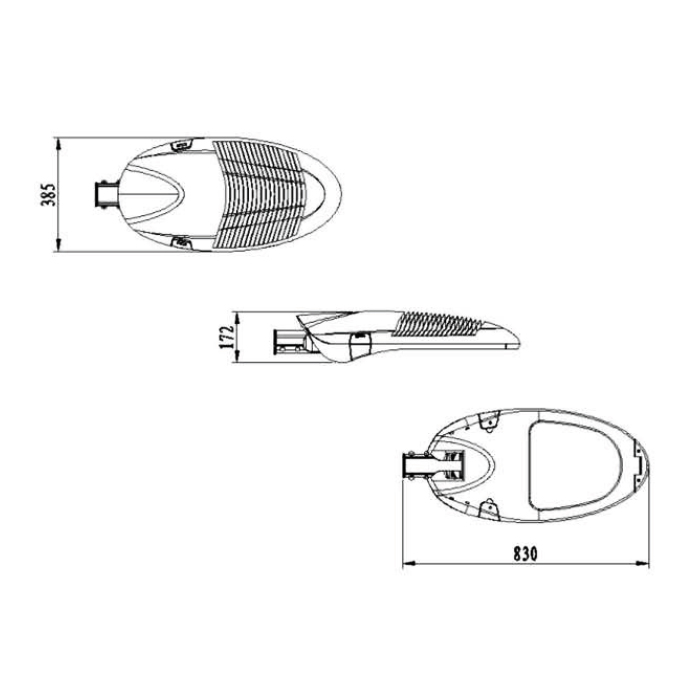

Dimensions
Height (mm)
172
Length (mm)
830
Width (mm)
385

Optical Data
Number of Modules
1, 2, 3, 4
Light Source
LED
Wattage
40W, 75W, 110W, 145W
Delivered Output (lm)
4927, 9239, 13550, 17862
Efficiency
176lm/W
Light Distribution
Asymmetric
Color Rendering Index
Ra> 70
Color Temperature (CCT)
3000K
Average Lamp Life
>50.000hrs

Electrical Data
Input Voltage/Frequency
120-277V, 50/60Hz
Electrical Class
Class I
Driver/Transformer
Included
Driver Mounting
Integrated
Control
Programmations
Surge Protection
Integrated surge protection device 10/20kV
Module type
Removable & future proof (according to ZHAGA book 15)
Lighting management system
All versions following Zagha Book 18 / Sensor Ready (SR) interface Pre-cable with custom length

Ordering Code

CodeNumber of modulesWattageDelivered Output (lm)CCT (K)EfficiencyWeight
Arrow 1 module140W49273000176 lm/W12.5Kg
Arrow 2 modules275W92393000176 lm/W12.5Kg
Arrow 3 modules2110W135503000176 lm/W12.5Kg
Arrow 4 modules2145W178623000176 lm/W12.5Kg

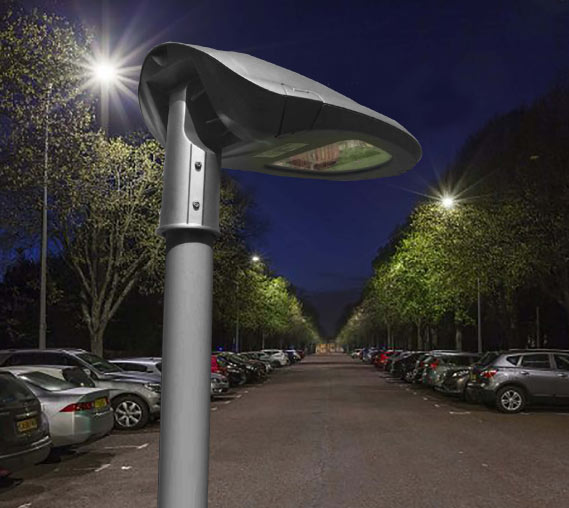

Ambient image

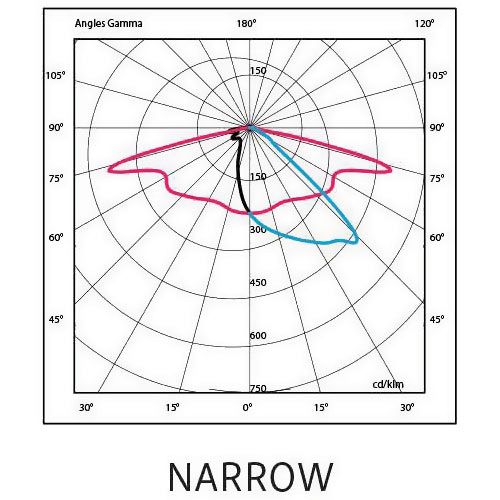

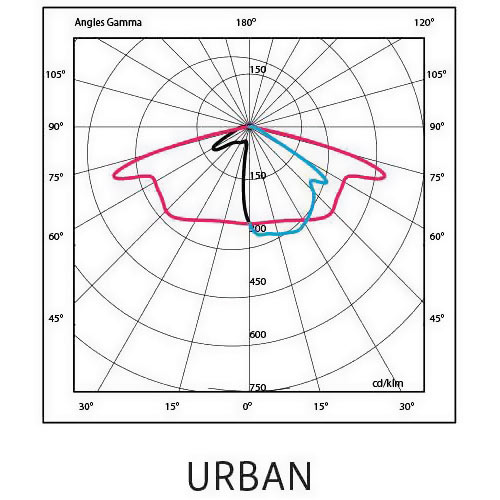

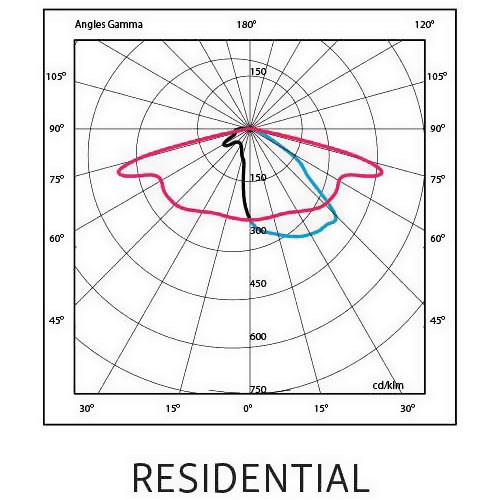

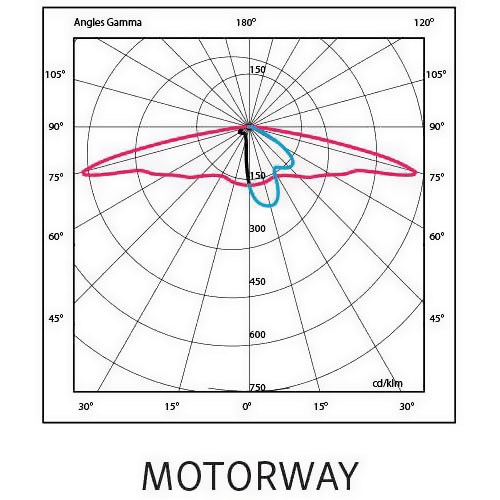

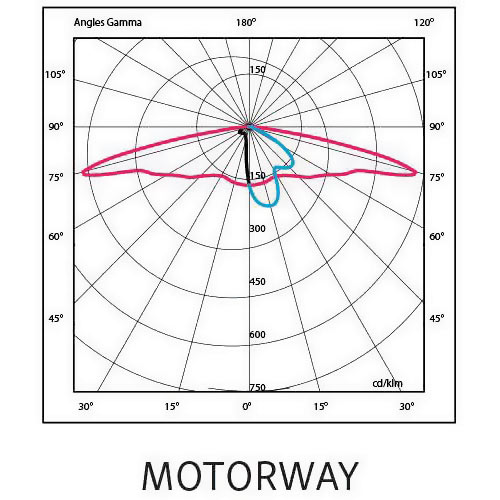

Photometric
