Cylindrical pole

With its simple and attractive design, cylindrical pole light element provides even and comfort lighting.
Its slender, streamlined form and minimalist design helps it blend seamlessly into its surroundings.
It is particularly suited to the lighting of busy areas such as squares, parks and pedestrian streets.
Designed to last in extremely harsh environments.
  • IP65
  • IK08
  • Class I
  • Meets CE safety standards, Rohs compliant
Cylindrical poleCylindrical pole
General Specifications
Application
Park Lighting, Pedestrian Area, Squares
Product Type
Landscape Lighting

Technical Data
Mounting
Ground Mounted
Material
Die-cast aluminum
Body Color
Anthracite
Housing
Corrosion resistant double layer polyester powder coated paint finish die cast aluminum housing, aluminum extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.
Diffuser
Shockproof PMMA UV Stabilised Diffuser
IP Protection
IP65
Ambient temperature
Ta -40°C - Ta +55°C
Screws
Stainless Steel

Optical Data
Wattage
54W
Delivered Output (lm)
5940, 6480
Efficiency
110-120lm/W
Light Distribution
360°, Symmetric
Color Changing (RGB-RGBW-RGBA)
SDCM<3
Color Rendering Index
Ra≥ 80 + Ra≥ 90 on request
Color Temperature (CCT)
2700K, 3000K, 4000K, 5000K, 6500K
Energy Efficiency Class
A++
Power factor
>0.95
Average Lamp Life
>100.000hr

Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Electrical Class
Class I
Driver/Transformer
Included
Driver Mounting
Integrated
Control
DALI

Certifications
Conformity
Complies with European Standards EN 60598

Ordering Code

CodeWattageDelivered Output (lm)CCT (K)Efficiency
RAY-BS-URB-BOL-54W-ITO-154W5940/64803000,4000110-120lm/W

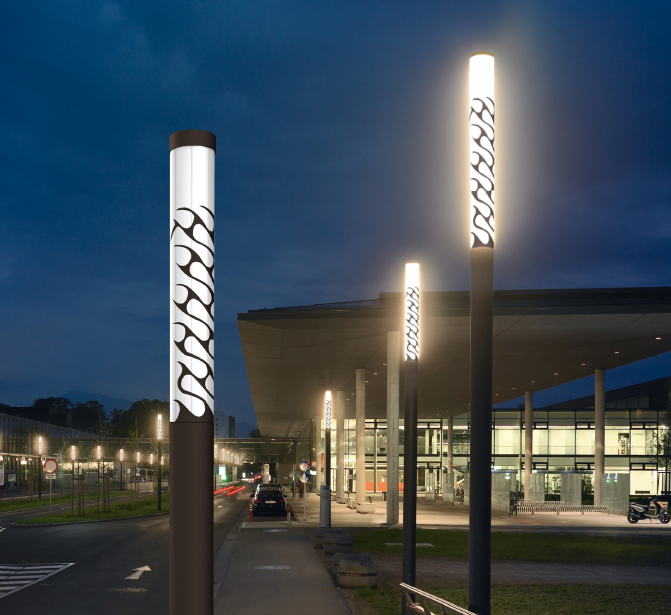

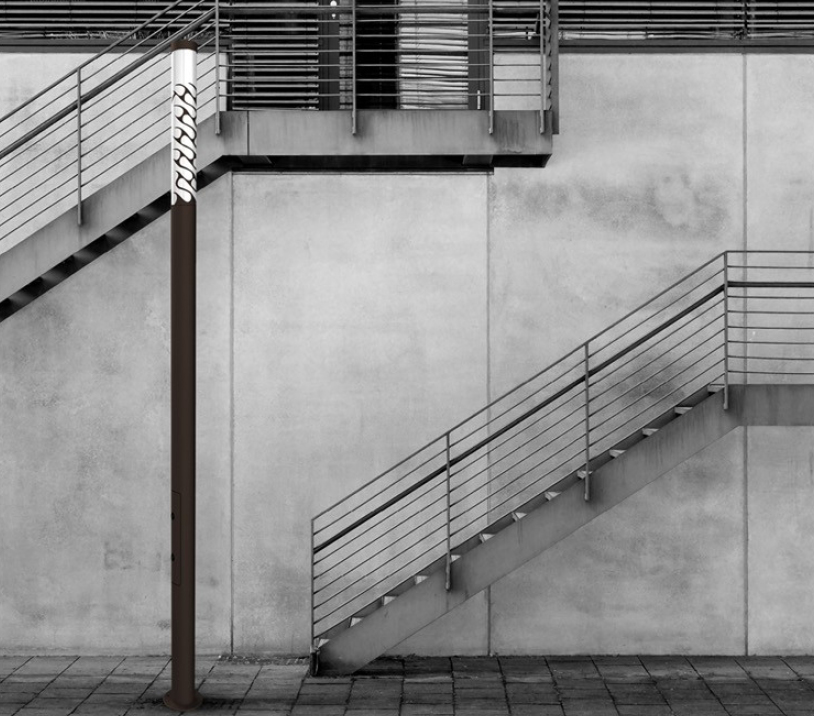

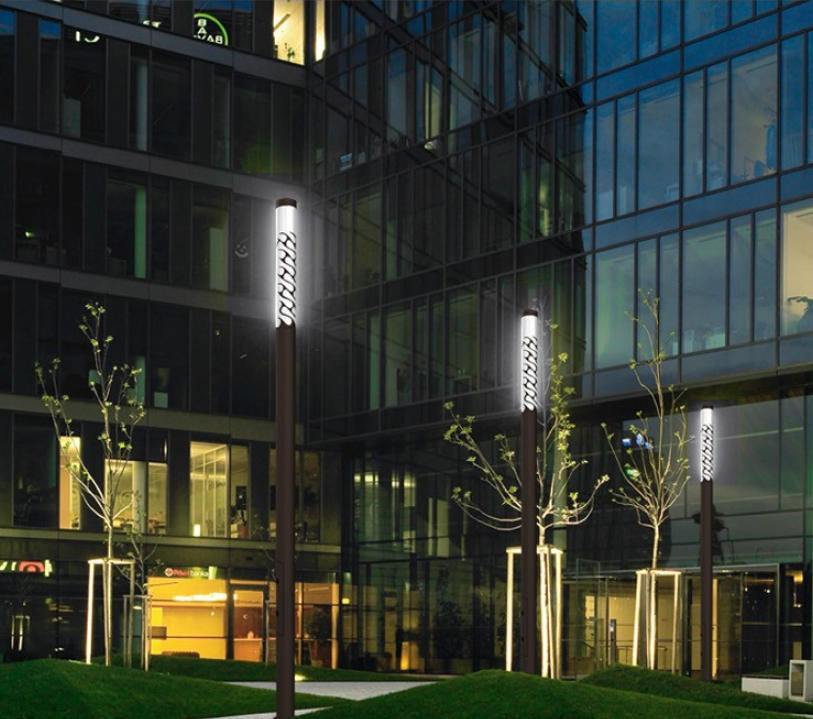

Ambient image

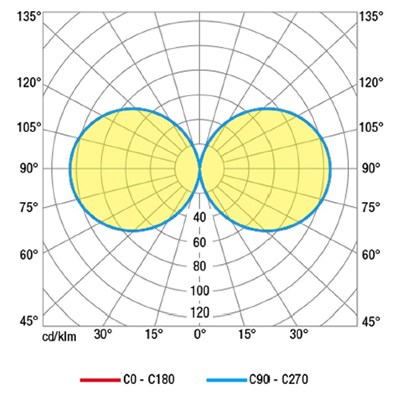

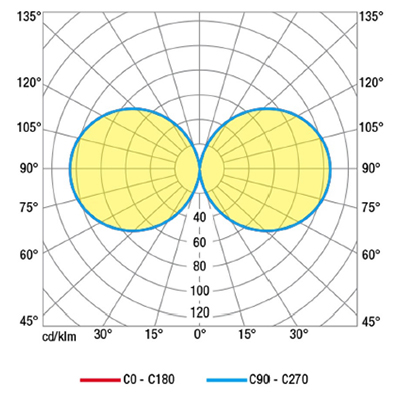

Photometric
