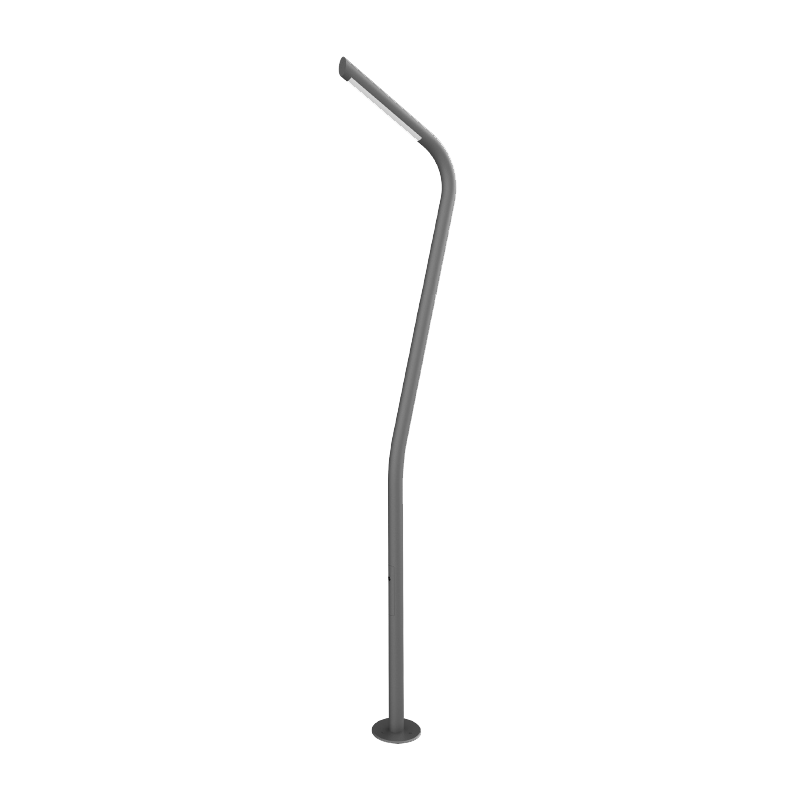

Curvy pole

Curvy Pole is an elegant lighting element that is suitable for both modern and classic architecture.
Ideal for creating visual guidance with exceptional visual comfort using LED technology.
Designed to last in extremely harsh environments.
  • IP65
  • IK08
  • Class I
  • Meets CE safety standards, Rohs compliant
Curvy poleCurvy poleCurvy poleCurvy pole
Datasheet

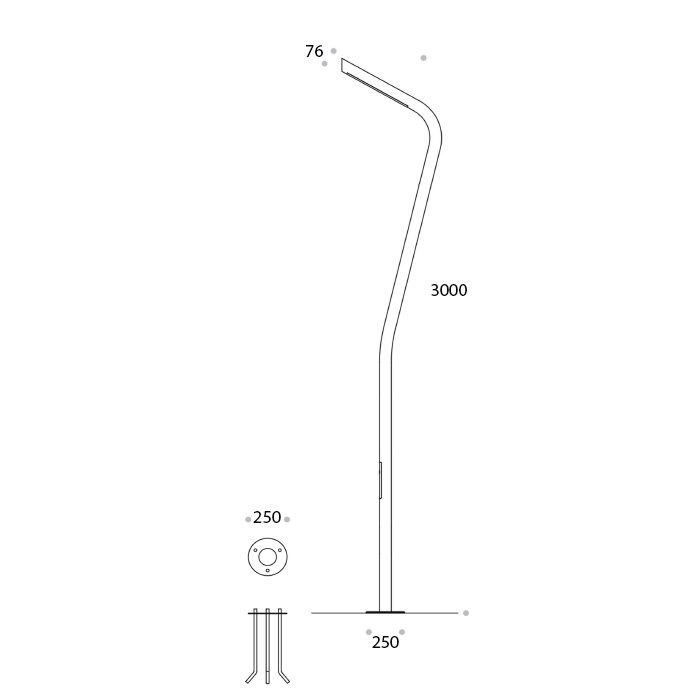

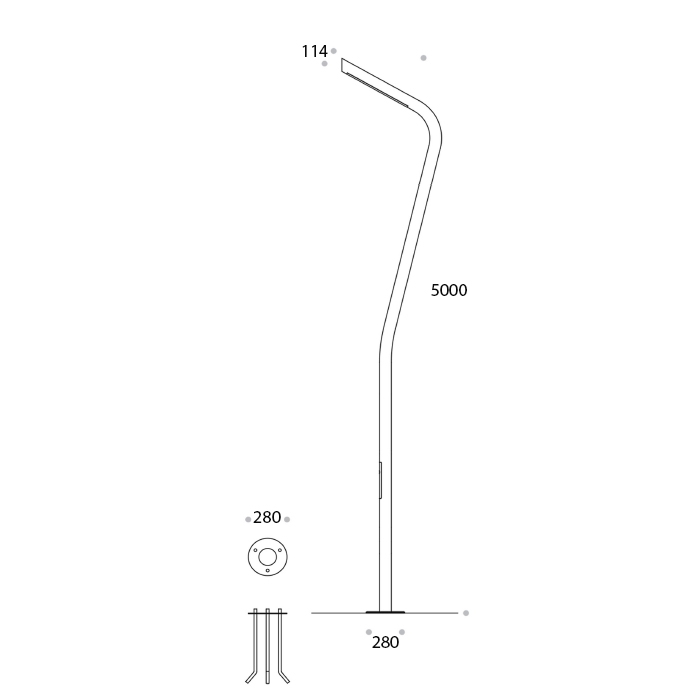

Drawing
Photometric
General Specifications
Application
Park Lighting, Pedestrian Area, Squares, Suburban Streets, Urban Roads
Product Type
Landscape Lighting
Technical Data
Mounting
Ground Mounted
Material
Galvanised steel
Body Color
Anthracite
Housing
Corrosion resitant double layer polyester powder coated paint finish hot dip galvanised steel housing, with stainless steel screws (A4 grade) and silicone gaskets.
Diffuser
Shockproof PMMA UV Stabilised Diffuser
IP Protection
IP65
Ambient temperature
Ta -40°C - Ta +55°C
Screws
Stainless Steel
Dimensions
Height (mm)
3000, 4000, 5000
Width (mm)
76, 89, 114
Optical Data
Wattage
36W, 54W, 72W
Color Changing (RGB-RGBW-RGBA)
SDCM<3
Color Rendering Index
Ra≥ 80 + Ra≥ 90 on request
Color Temperature (CCT)
2700K, 3000K, 4000K, 5000K, 6500K
Energy Efficiency Class
A++
Power factor
>0.95
Average Lamp Life
>100.000hr L90, TM-21
Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Electrical Class
Class I
Driver/Transformer
Included
Driver Mounting
Integrated
Control
DALI
Certifications
Conformity
Complies with European Standards EN 60598

Ordering Code

CodeDimensions (mm)WattageDelivered Output (lm)CCT (K)
RAY-BS-URB-BOL-36W-IBT76*3000*25036W2700/30603000,4000
RAY-BS-URB-BOL-54W-IBT89*4000*28054W4050/45803000,4000
RAY-BS-URB-BOL-72W-IBT114*5000*28072W5400/61203000,4000

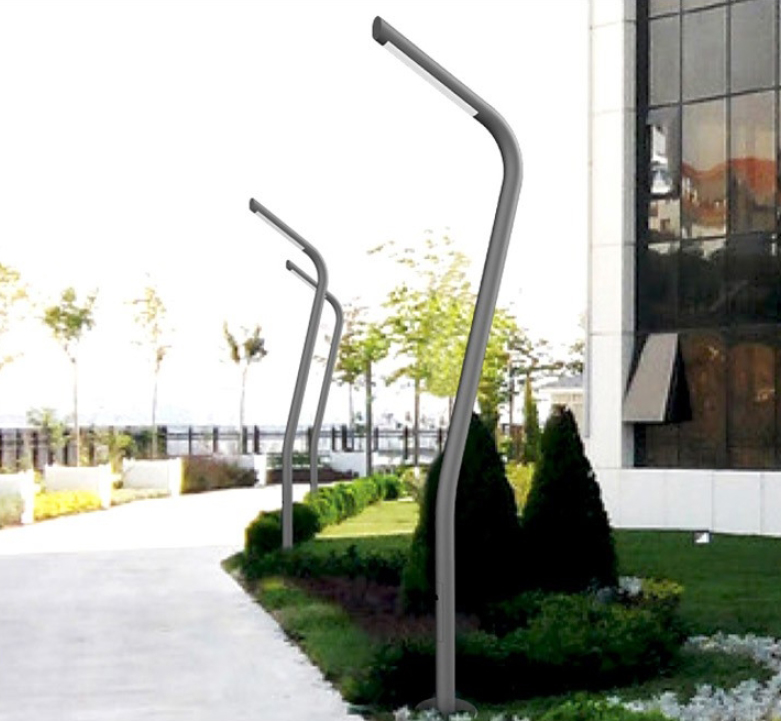

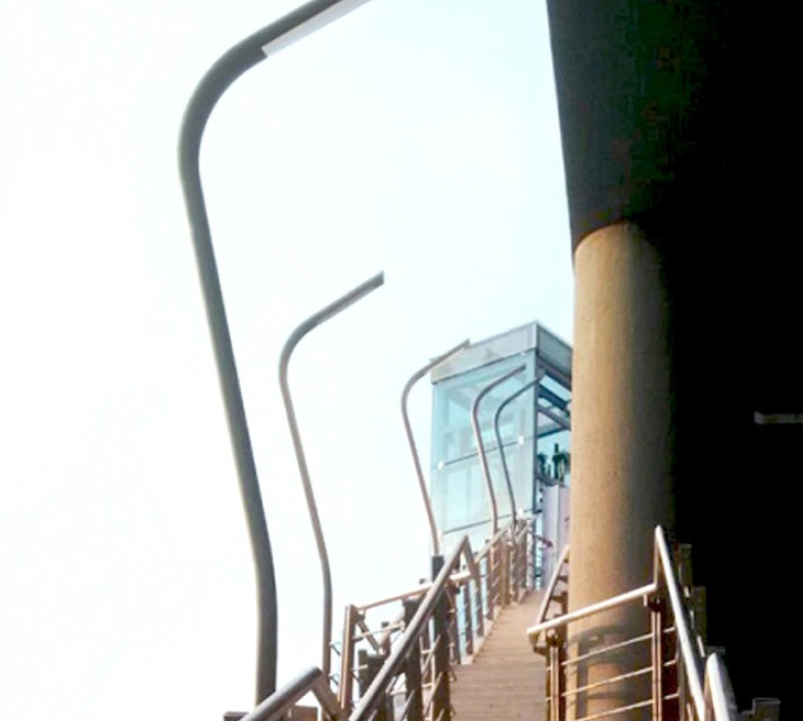

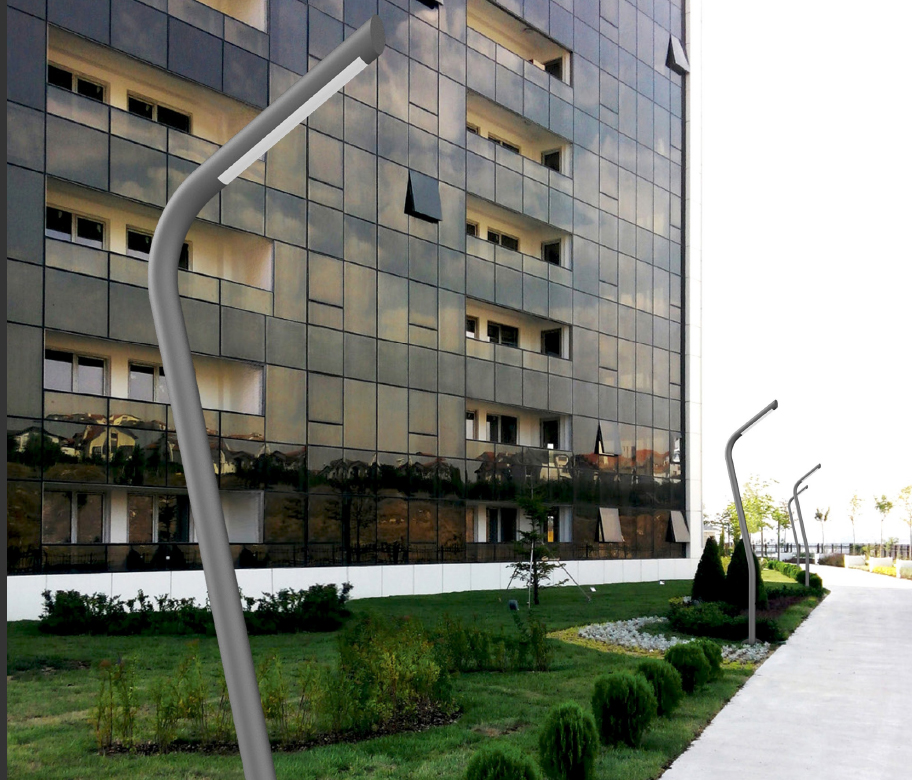

Ambient image

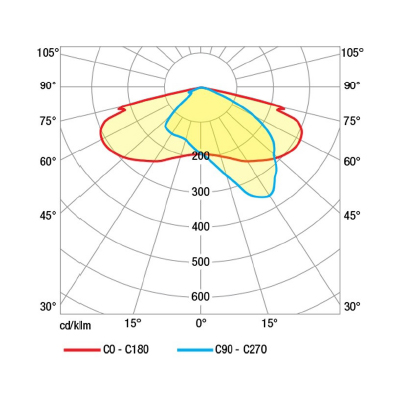

Photometric
