BARRETA 3

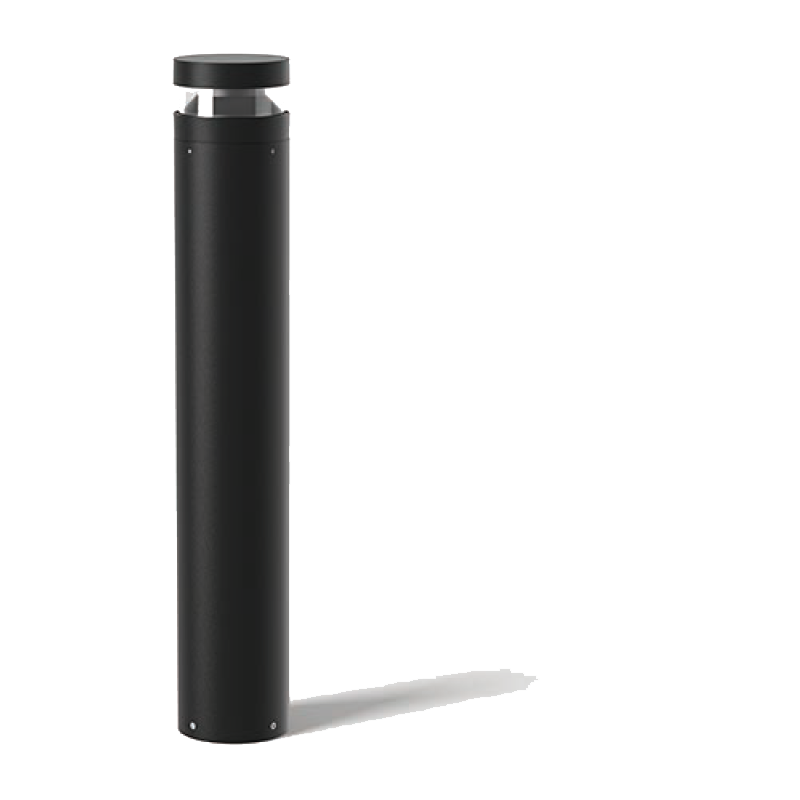

BARRETA 3
Barreta 3 is a design of 955mm height bollard light with rotationally symmetrical light, Height 360° beam angle or 180° half shield available.
Specially designed to give a wonderful and warm ambience.
Datasheet

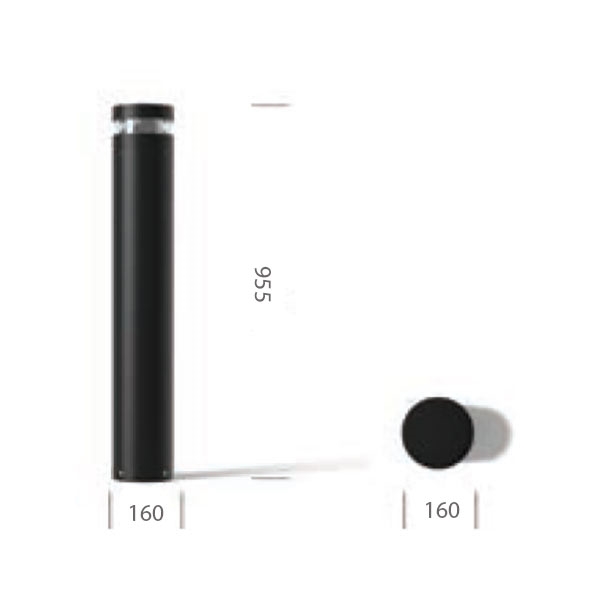

Drawing
General Specifications
Application
Pathway, Garden Roads, Park Lighting
Product Type
Bollard,
Landscape Lighting
Technical Data
Mounting
Bollard Light
Material
Die-casting aluminum alloy, Extruded aluminium profile
Body Color
Black
Diffuser
Clear polycarbonate diffuser, aluminium reflector
IP Protection
IP65
Ambient temperature
Ta= max 50°C
Storage temperature
-20°C to 50°C
Dimensions
Diameter (mm)
Φ160
Height (mm)
955
Optical Data
Light Source
LED
Wattage
24W
Delivered Output (lm)
2100
Light Distribution
360°, 180°
Color Rendering Index
Ra> 80
Color Temperature (CCT)
3000K, 4000K
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Driver/Transformer
Included
Driver Mounting
Integrated
Ordering Code
Code
Dimensions (mm)
Wattage
Delivered Output (lm)
CCT (K)
RAY -BARRETA 3-BOLL-1000-IP65-24W
Φ160*955
24W
2100
3000,4000

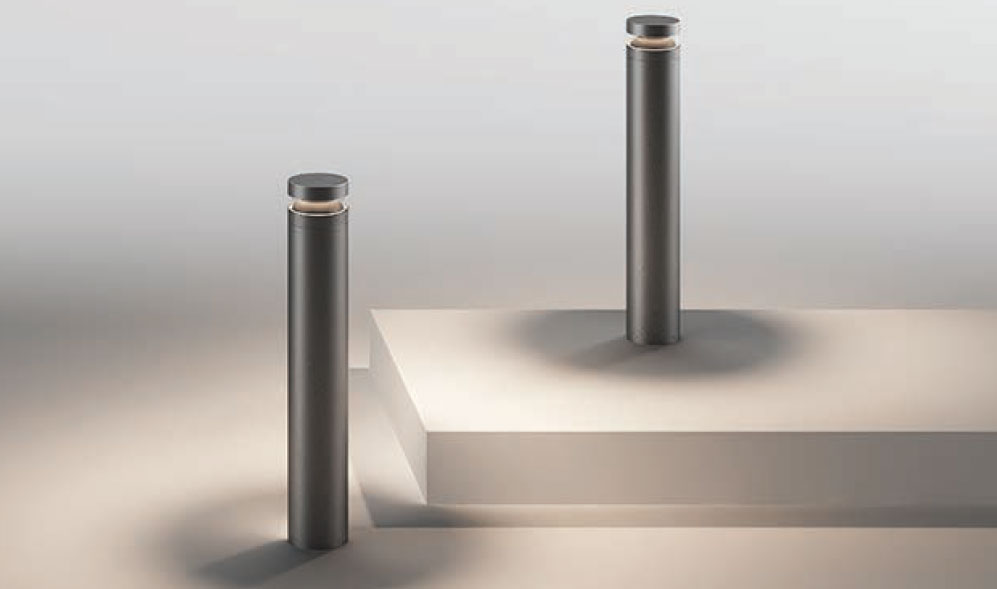

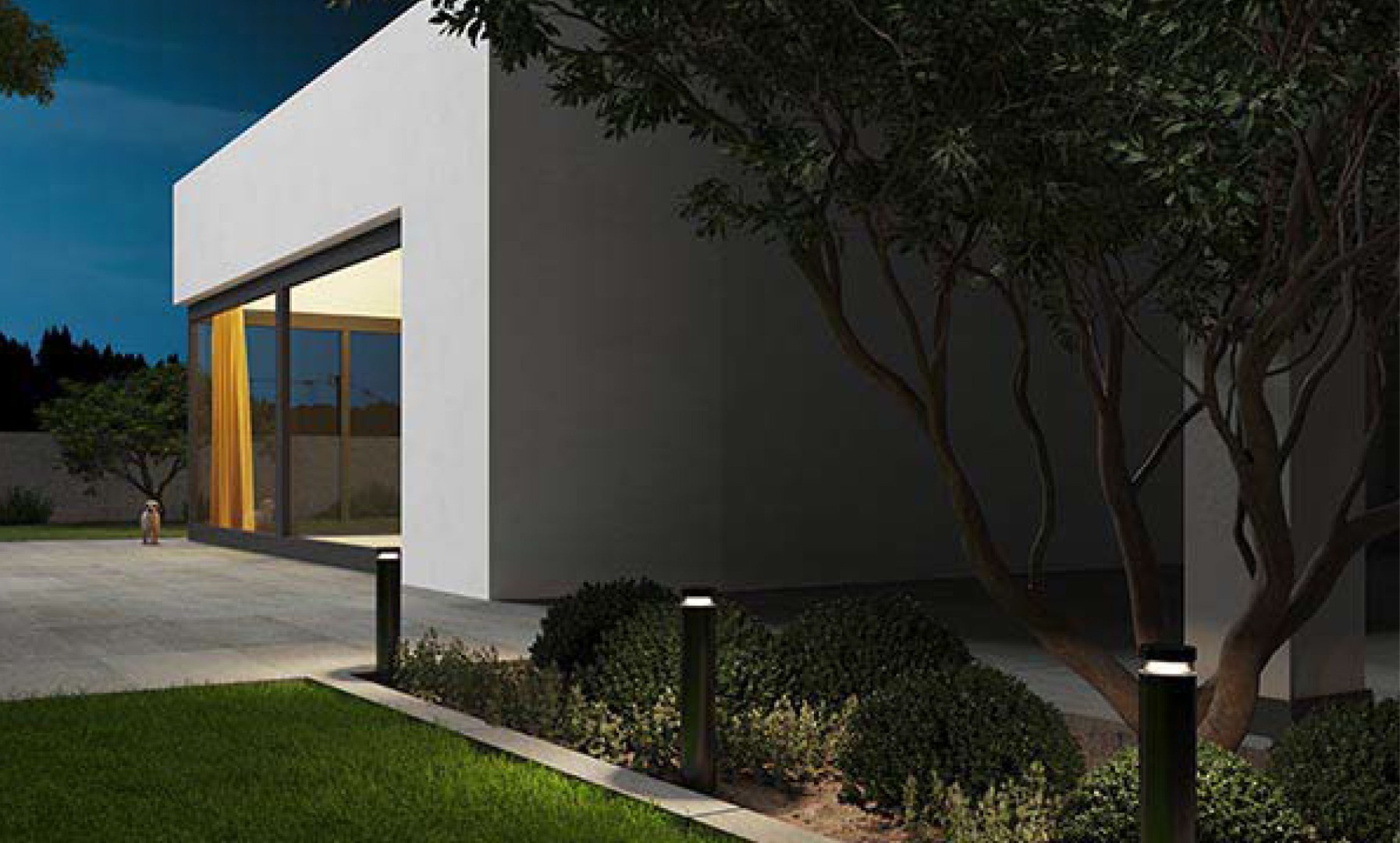

Ambient image
