Galileo

Architectural lighting purpose is to emphasize the characteristics of a building, adding value to the design and creating an emotion on the observers.
Galileo guarantees safety, eco-sustainability and allows to reduce costs, increase energy savings and light up efficiently.
  • IP66
  • IK08
  • Class I
  • Class II
GalileoGalileoGalileoGalileoGalileoGalileo
General Specifications
Application
Building Centers, Road Lighting
Product Type
Floodlights, Street Light
LED Current mA
525, 700

Technical Data
Mounting
U-Bracket
Material
Die-cast aluminum
Body Color
Grey
Optics
Aluminium reflector Class A+. Photobiological Safety Class EXEMPT GROUP.
Diffuser
Flat tempered glass, 4mm thickness
IP Protection
IP66
Ambient temperature
Ta= max 25°C
Heat-sink
Die-cast aluminium UNI EN 1706, powder painted. AEC Thermo Flow technology for optical unit lifetime.
Front cover (material / thickness)
Frame and cover of the optical system in die cast aluminium
Cable gland
Cable box in die cast aluminium alloy UNI EN 1706, powder painted with low copper content.

Optical Data
Number of Modules
1, 2, 3
Wattage
54.5W, 150W, 306W, 459W
Delivered Output (lm)
13500, 16620, 32240, 47360
Light Distribution
STW, ASP, STE, STU, S05
Power factor
>0.90
Average Lamp Life
>100.000hr

Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Electrical Class
Class I, Class II
Driver/Transformer
Included
Driver Mounting
Integrated
Control
DALI, Wireless
Mains connection
Mains connection with integrated cable H07RN-F and M/F connector IP66/68.

Certifications
Conformity
EN 61000-3-3

Ordering Code

CodeDimensions (mm)Number of modulesWattageDelivered Output (lm)Beam Angle
GALILEO 1 floodlight for high mast solution ASP 525mA437*231*310133 - 54.5W4310 - 13500ASP
GALILEO 1 floodlight for high mast solution STE, STU, STW, S05 525mA437*231*310133 - 54.5W3210 - 13330S05,STE,STU,STW
GALILEO 1 floodlight for high mast solution ASP 700mA437*231*3102,360 - 150W5390 - 16620ASP
GALILEO 1 floodlight for high mast solution STE, STU, STW, S05 700mA437*231*3102,360 - 150W4060 - 16460S05,STE,STU,STW
GALILEO 2 floodlight for high mast solution ASP 525mA486*437*3674,5,6117 - 306W17510 - 26240ASP
GALILEO 2 floodlight for high mast solution STE, STW 525mA486*437*3678,10,12117 - 306W13140 - 25440STE,STW
GALILEO 2 floodlight for high mast solution ASP 700mA486*437*3674,5,6117 - 306W21560 - 32240ASP
GALILEO 2 floodlight for high mast solution STE, STW 700mA486*437*3678,10,12117 - 306W16450 - 31220STE,STW
GALILEO 3 floodlight for high mast solution ASP 525mA741*437*3677,8,9268.5 - 459W29770 - 38620ASP
GALILEO 3 floodlight for high mast solution ASP 700mA741*437*3677,8,9268.5 - 459W36560 - 47360ASP

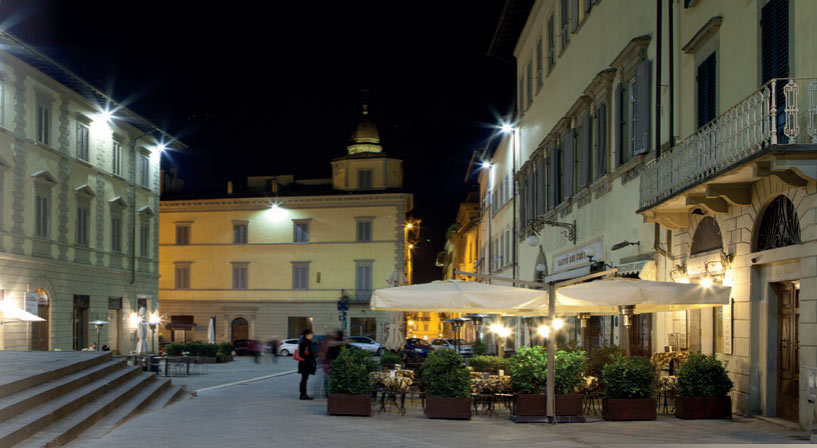

Ambient image

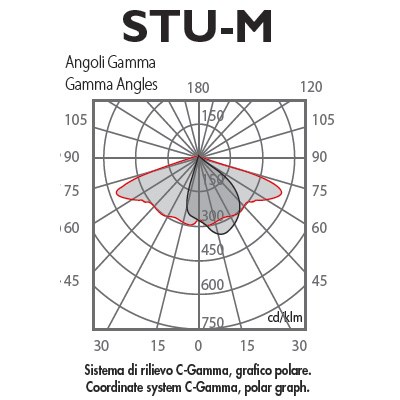

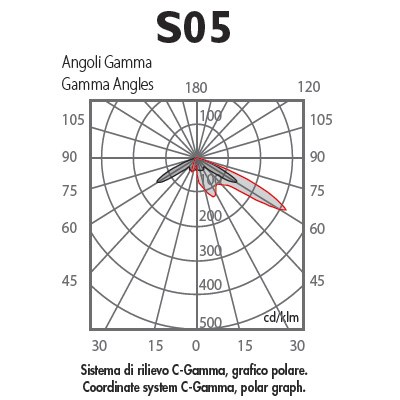

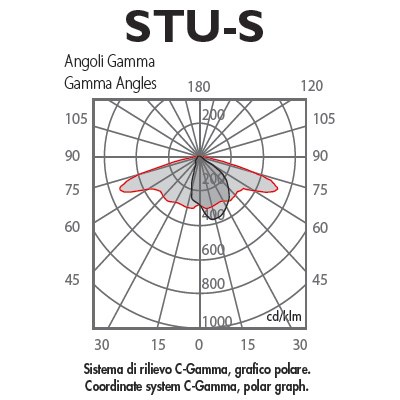

Photometric
