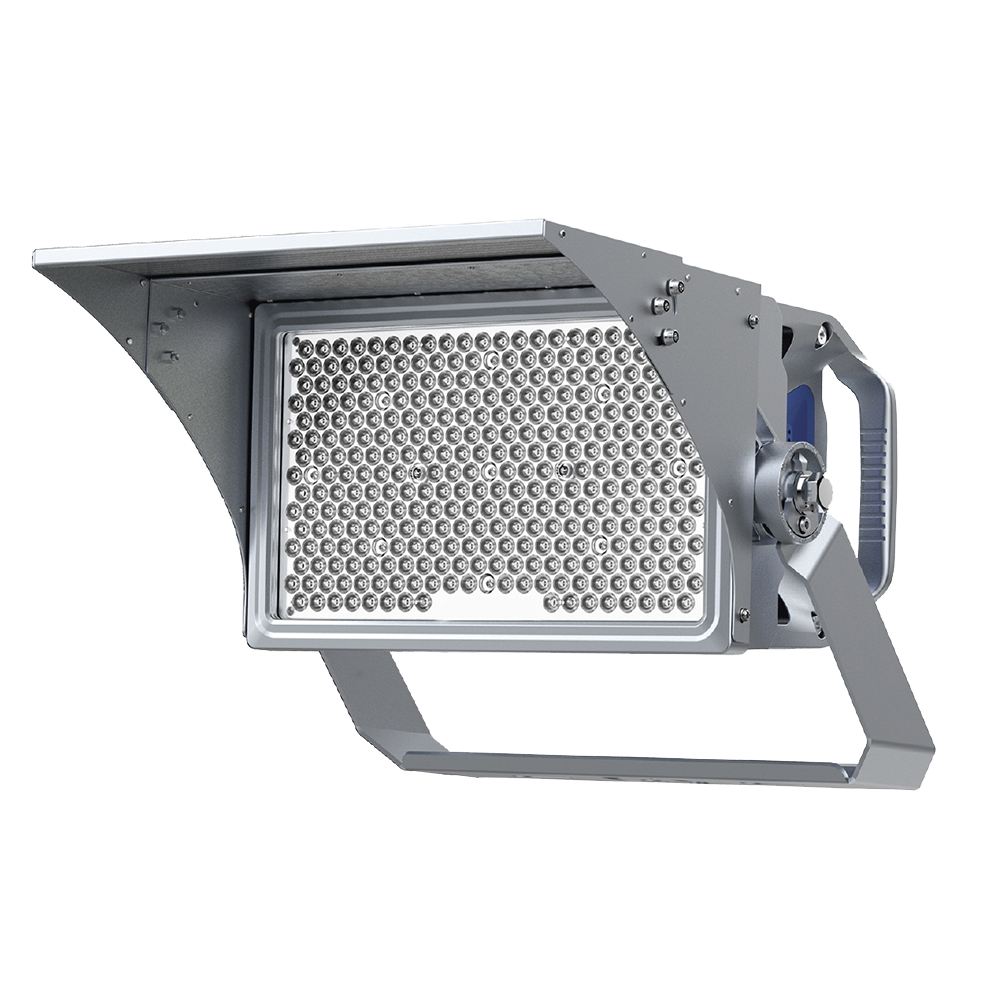

Arena Ray

A new generation of floodlights, light weight, small size, small wind resistance, high brightness, wide illumination range and adjustable beam angle.
The power supply can be built-in/external.
It is easy to install and has a handle.
The waterproof performance of the lamp is IP66, suitable for outdoor large venues such as stadiums, docks and airports.
The light is designed by our own R&D teams.
Various tests like smoke test, water test, and packaging vibration test have been done to ensure its excellent waterproof performance, high packing standard, and safety during transportation.
  • Small size and small wind resistance.
  • Products are equipped with hoists for easy installation.
  • Easy external wiring.
  • Intelligent dimming.
  • The power supply can be built outside.
  • Low transportation costs.
  • IP66
  • IK08
  • Class I
Arena RayArena RayArena RayArena Ray
General Specifications
Application
Airport Lighting, Docks, Stadiums
Product Type
Floodlights

Technical Data
Mounting
U-Bracket
Material
Die-cast aluminum
Body Color
Grey
Optics
The Laser Aiming Device gives you precision control in angling and aiming each sport light to its exact optimal position.
The photocontroller is applicable to control the lighting automatically in accordance with the ambient natural lighting level.
Diffuser
PC Diffuser
IP Protection
IP66
Heat-sink
Die-cast aluminum
Front cover (material / thickness)
Glass cover
Weight (Kg)
14

Dimensions
Height (mm)
338.6
Length (mm)
480
Width (mm)
545.7

Optical Data
Number of Modules
1
Wattage
400W, 500W, 630W, 1000W, 1260W
Efficiency
Ra90 5700K 120lm/W, Ra80 5700K 130lm/W
Light Distribution
10°, 15°, 20°, 30°, 60°, 90°, 120°
Color Rendering Index
Ra> 70, Ra> 80, Ra> 90
Color Temperature (CCT)
3000K, 4000K, 5000K, 5700K, 6500K
Power factor
>0.95
Average Lamp Life
>50.000hrs

Electrical Data
Input Voltage/Frequency
100-277V, 50/60Hz, 200-480V, 50/60Hz
Electrical Class
Class I
Driver/Transformer
Included
Driver Mounting
Integrated
Control
Dimmable 1-10V, DMX, DALI
Total harmonic distortion
<15%
Surge Protection
Integrated surge protection device 10/20kV
Module type
Lumiled 5050 & Samsung3535

Ordering Code

CodeDimensions (mm)WattageWeight
Arena Ray 1480*545.7*338.6mm400W/500W/630W14Kg
Arena Ray 2564*729*550mm1000W/1260W29Kg
