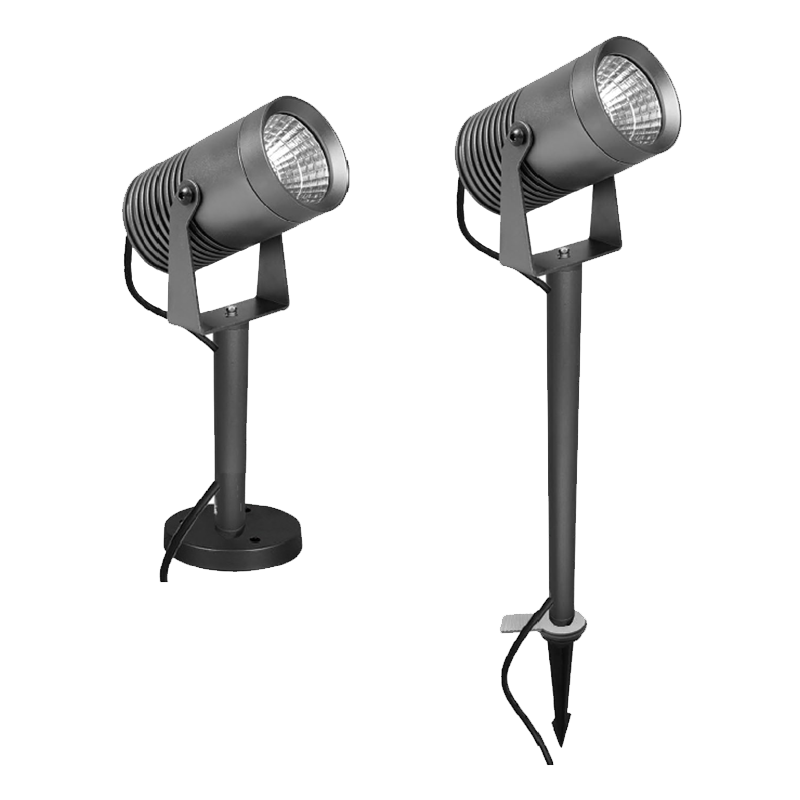

CORON

CORON is a garden spot light, IP67, LED 15W.
  • IP67
  • IK04
  • Meets CE safety standards, Rohs compliant
  • CB
  • IECEE
CORONCORON
Datasheet

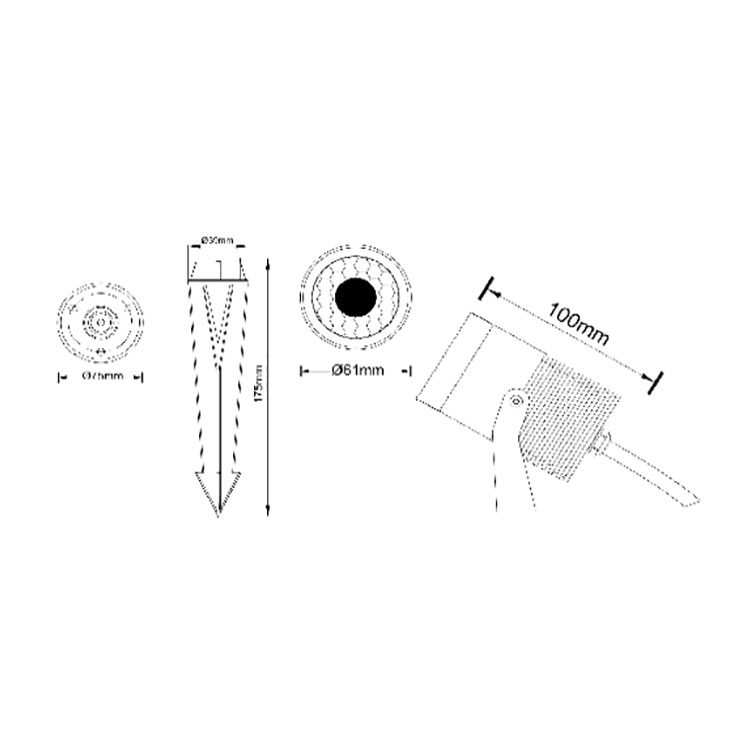

Drawing
Photometric
General Specifications
Application
Outdoor, Indoor
Product Type
Spotlight
Technical Data
Mounting
Spike Mounted, Surface Mounted
Material
Aluminium
IP Protection
IP67
Ambient temperature
Ta -20°C - Ta +50°C
Dimensions
Diameter (mm)
Φ61
Length (mm)
100
Optical Data
Light Source
LED
Wattage
15W
Delivered Output (lm)
1350
Light Distribution
25°, 38°, 60°
Color Rendering Index
Ra> 80
Color Temperature (CCT)
2700K, 3000K, 4000K
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Driver/Transformer
Included
Driver Mounting
Integrated

Ordering Code

CodeDimensions (mm)WattageDelivered Output (lm)CCT (K)
RAY -CORON-SPK-75-IP67-15WΦ61*10015W13502700,3000,4000

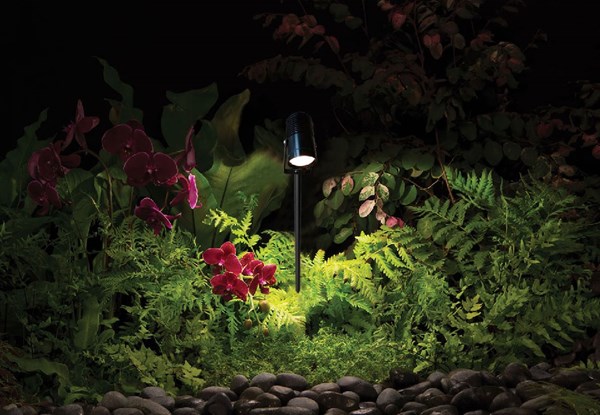

Ambient image

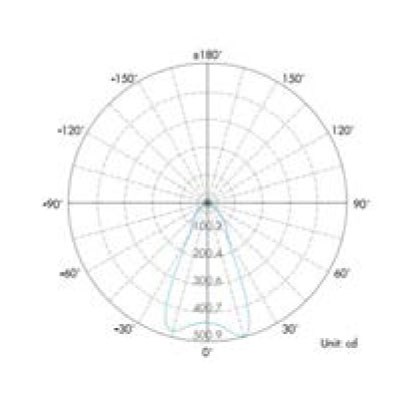

Photometric
