Rayon Lighting

General Specifications

Application

General Illumination, Hotels, Offices, Residential Buildings, Restaurants

Product Type

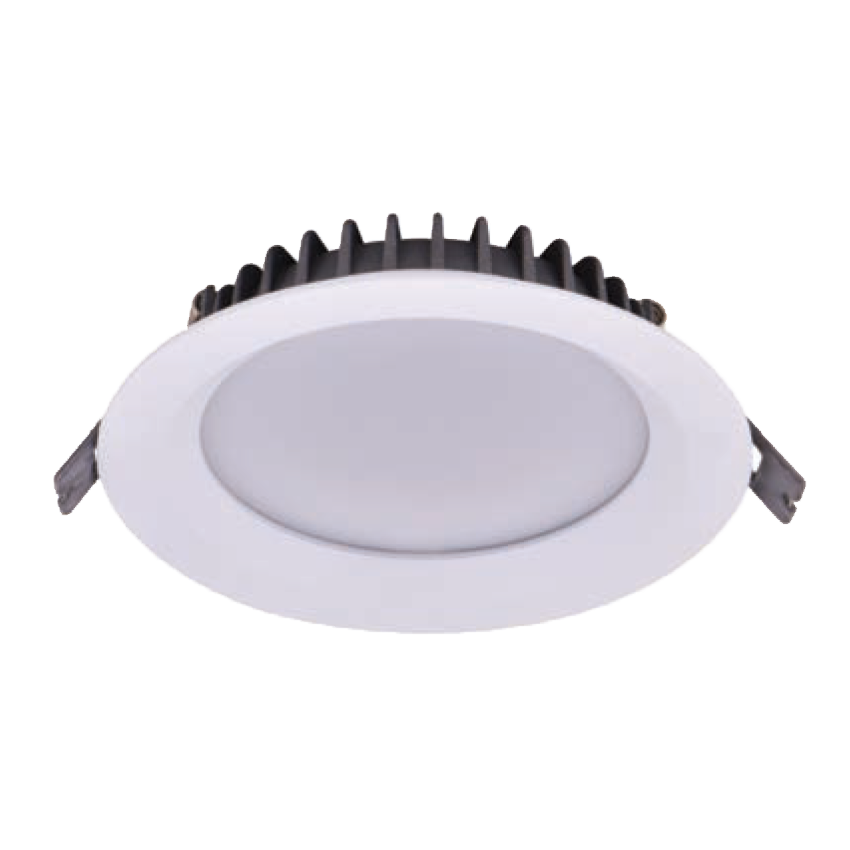

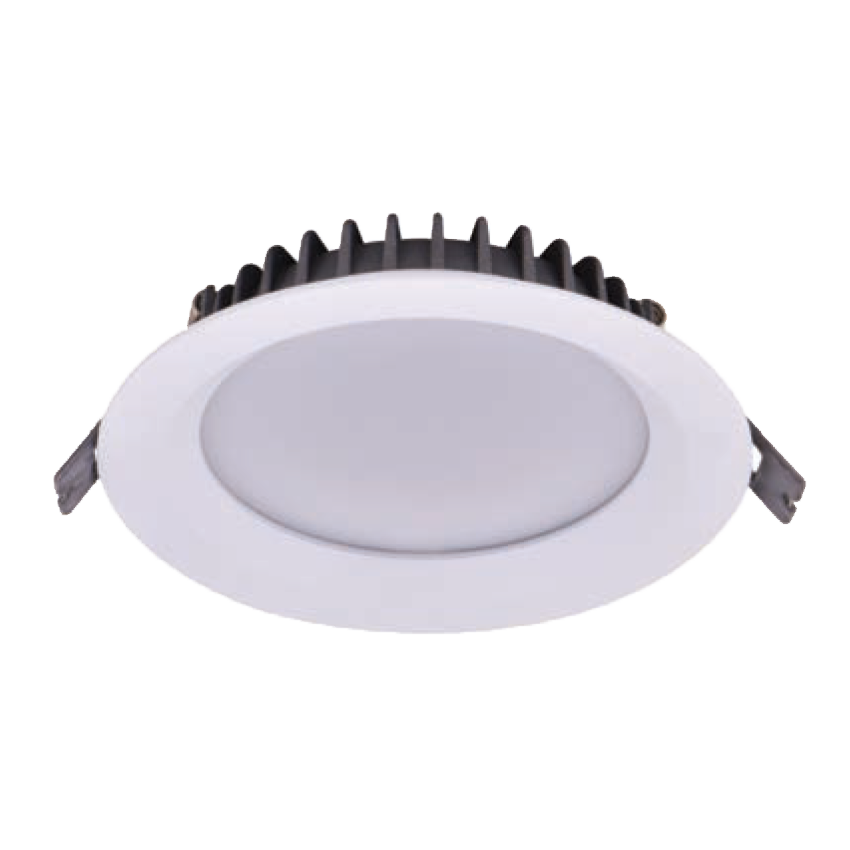

Recessed Downlight

Notes

On/Off Remote driver Included as a standard, 0-10 and DALI dimmable Driver as an optional.
Available 3 hours emergency kit as an optional.

Technical Data

Mounting

Recessed Mounted

Material

Die-cast aluminum

Body Color

White

Finish

White

Diffuser

PMMA

IP Protection

IP20, IP44

Ambient temperature

Ta -20°C - Ta +45°C

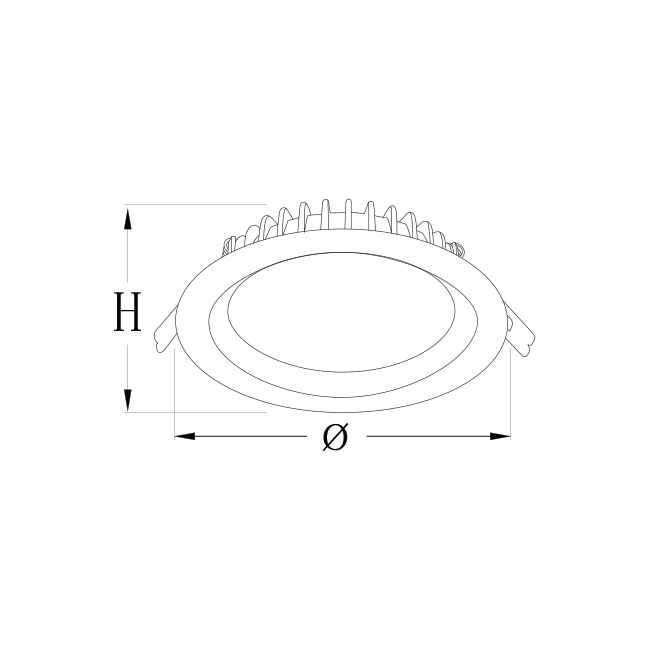

Dimensions

Dimensions (mm)

available in different Dimensions

Diameter (mm)

Φ118, Φ180, Φ190, Φ240

Height (mm)

36, 43.5, 45, 56

Cut-out (mm)

Φ90, Φ155, Φ160, Φ210

Optical Data

Light Source

SMD LED

Wattage

7W, 12W, 20W, 30W

Gross luminous flux (lm)

780, 1440, 2550, 3800

Delivered Output (lm)

700, 1290, 2030, 3100

Light Distribution

Very Wide

Color Rendering Index

Ra> 80

Color Temperature (CCT)

3000K, 4000K, 6500K

Power factor

>0.90

Average Lamp Life

>50.000hrs

Electrical Data

Input Voltage/Frequency

220-240V, 50/60Hz

Driver Mounting

Remote

Ordering Code

Code	Dimensions (mm)	Cut-out size (mm)	Wattage	Gross luminous flux (lm)	Delivered Output (lm)	CCT (K)	IP Protection
RAY- SD-DL REC- 90- IP20- 7W	Φ118*36	Φ90	7W	780	700	3000,4000,6500	IP20
RAY- SD-DL REC- 155- IP20-12W	Φ180*43.5	Φ155	12W	1440	1290	3000,4000,6500	IP20
RAY- SD-DL REC- 160- IP20-20W	Φ190*45	Φ160	20W	2550	2030	3000,4000,6500	IP20
RAY- SD-DL REC- 210- IP20- 30W	Φ240*56	Φ210	30W	3800	3100	3000,4000,6500	IP20
RAY- SD-DL REC- 90- IP44- 7W	Φ118*36	Φ90	7W	780	700	3000,4000,6500	IP44
RAY- SD-DL REC- 155- IP44- 12W	Φ180*43.5	Φ155	12W	1440	1290	3000,4000,6500	IP44
RAY- SD-DL REC- 160- IP44- 20W	Φ190*45	Φ160	20W	2550	2030	3000,4000,6500	IP44
RAY- SD-DL REC- 210- IP44- 30W	Φ240*56	Φ210	30W	3800	3100	3000,4000,6500	IP44

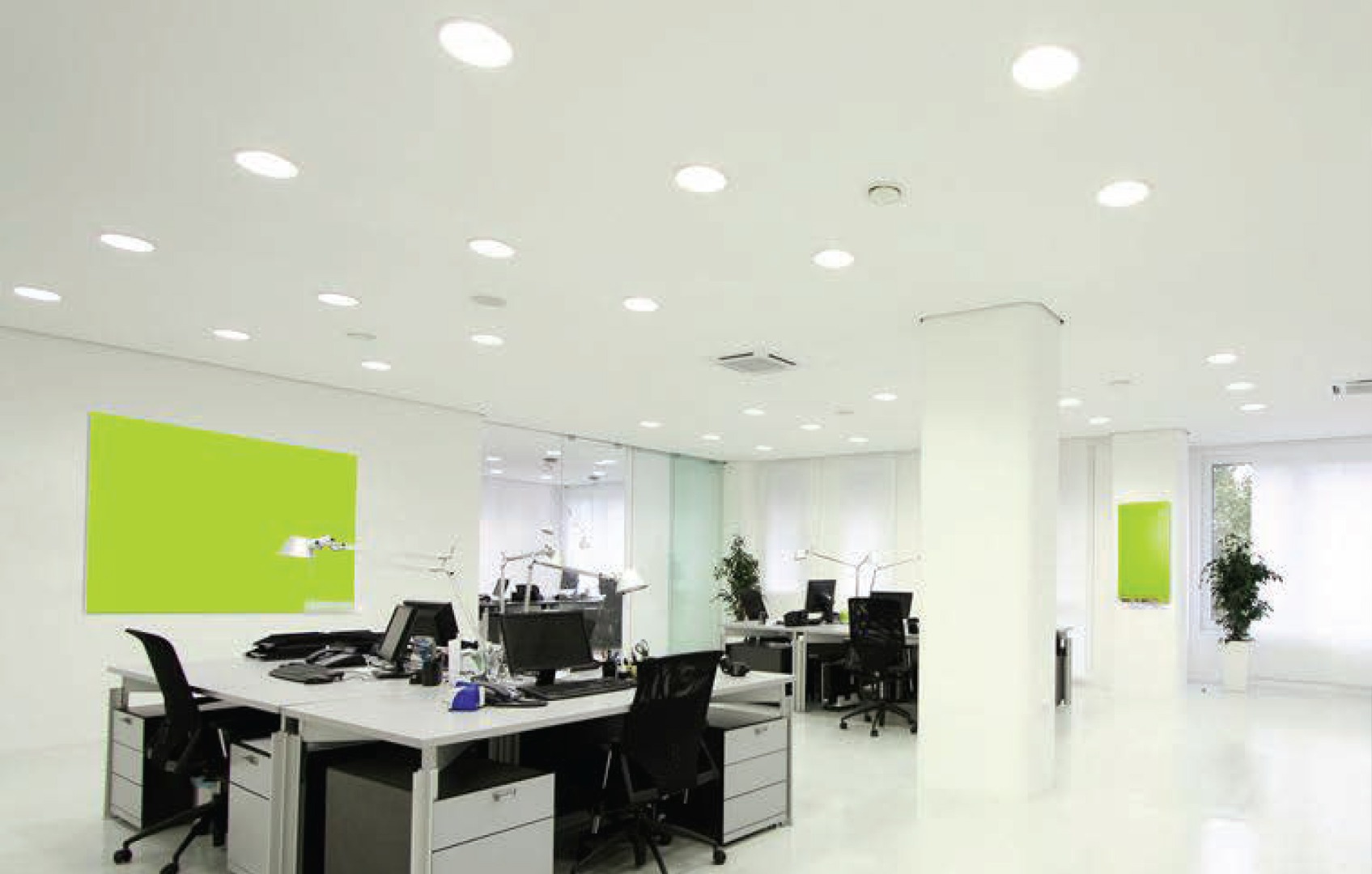

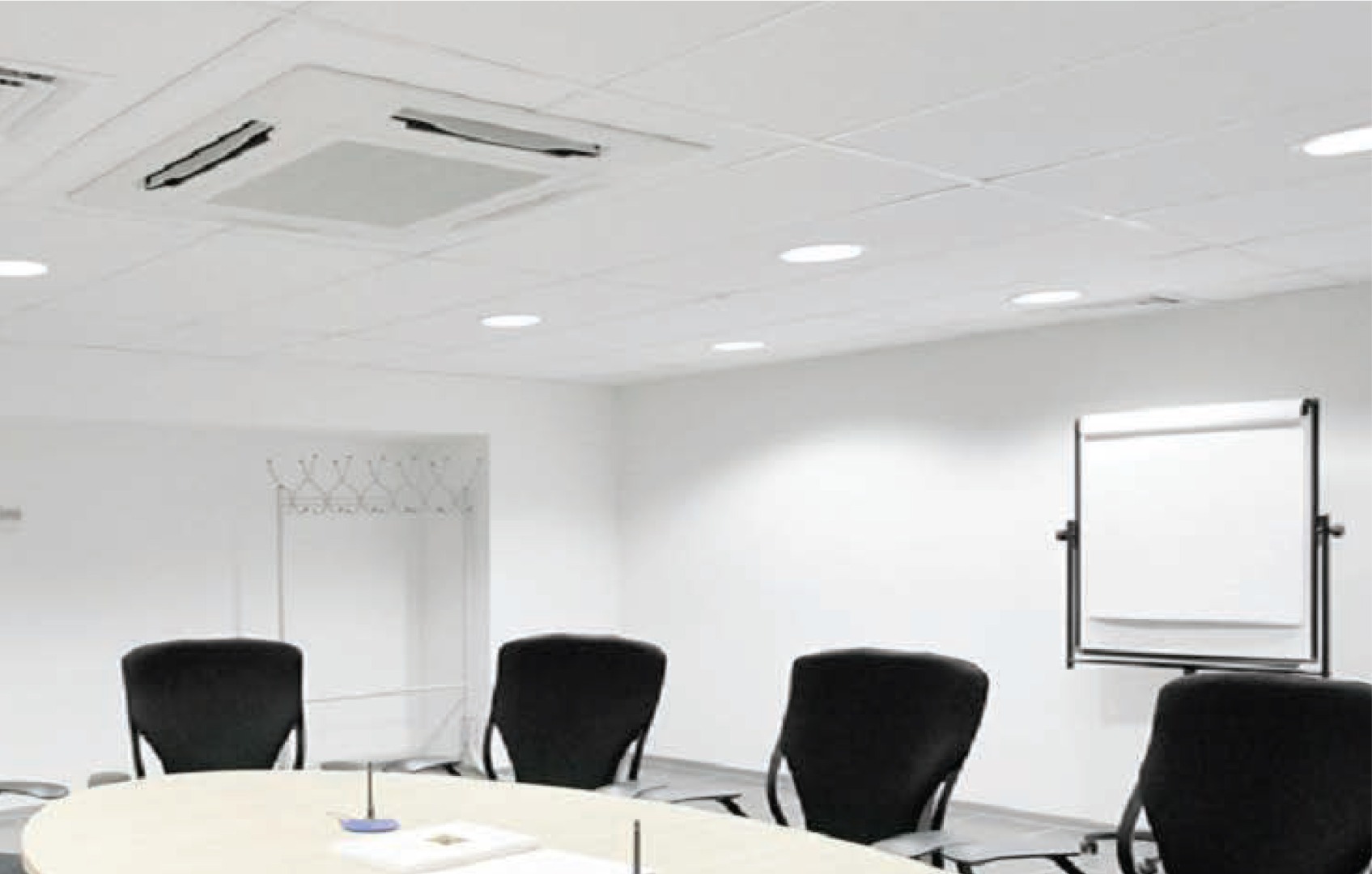

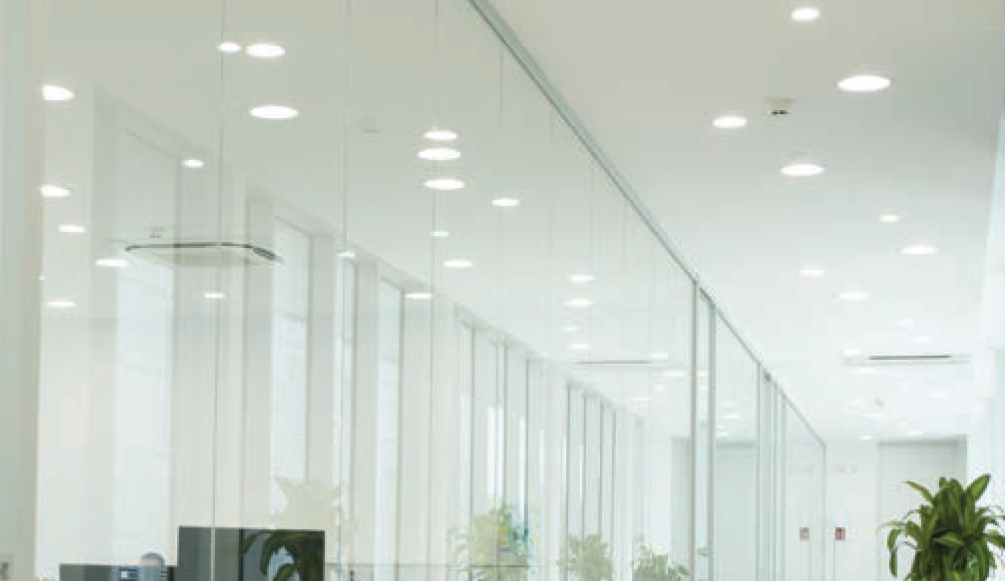

Ambient image

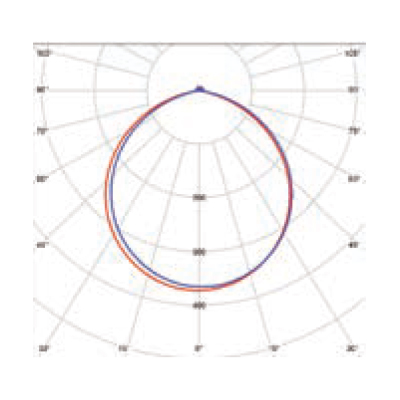

Photometric
