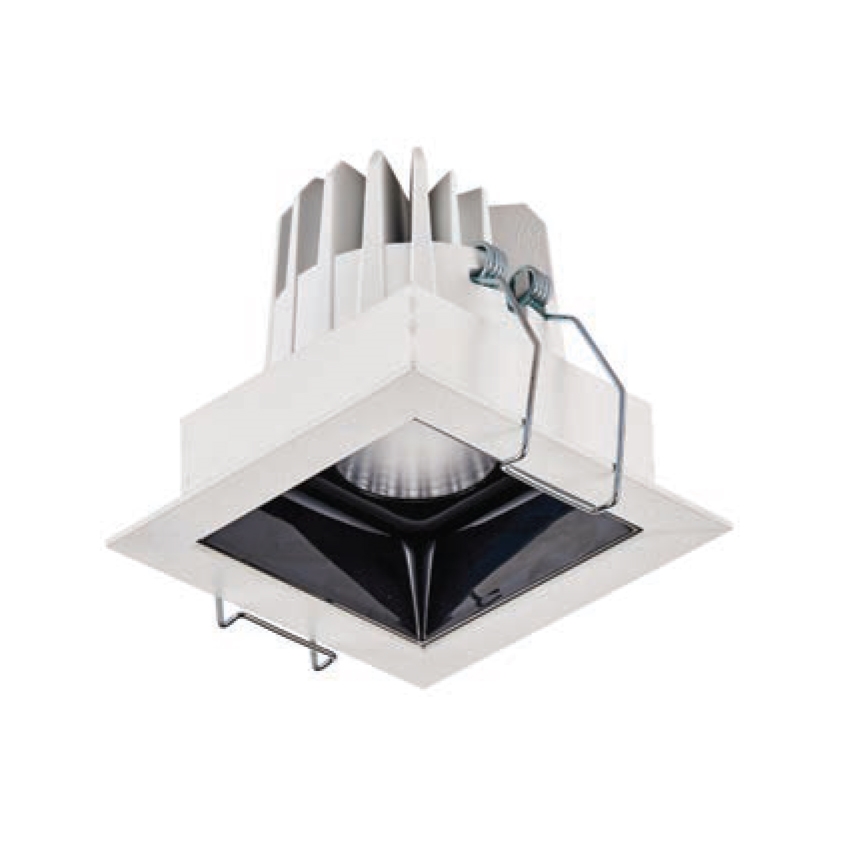

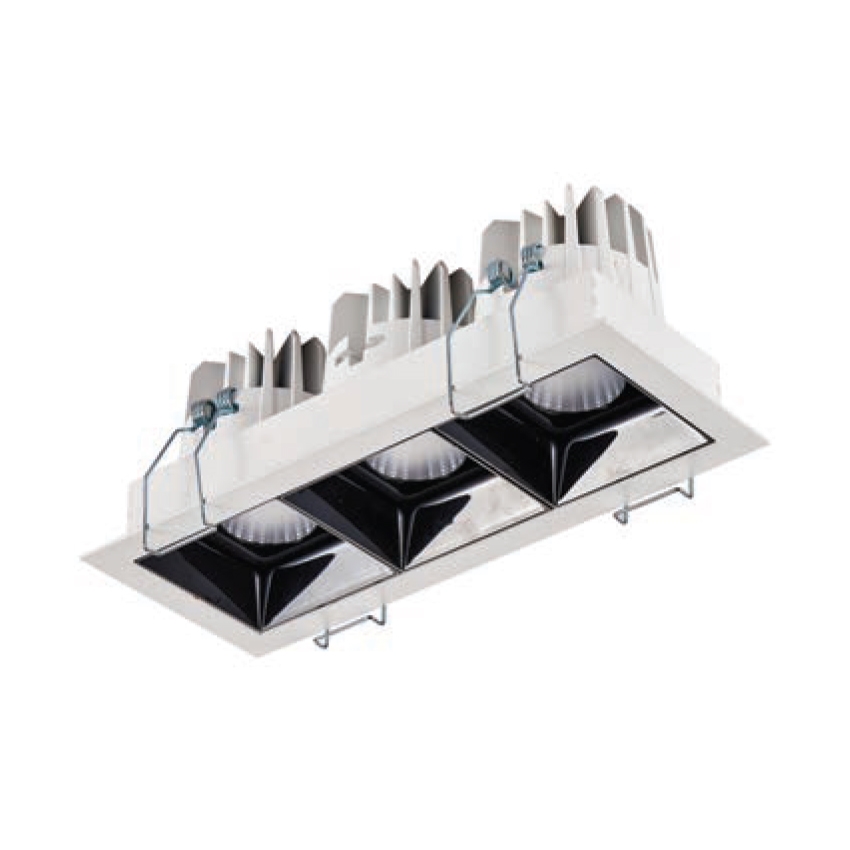

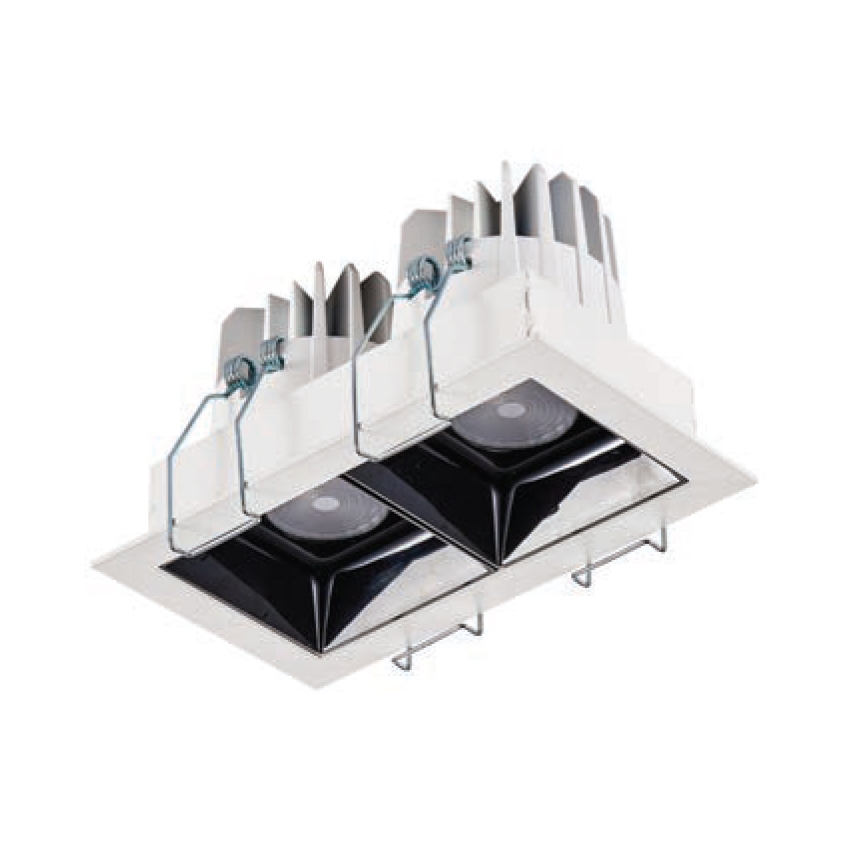

G LED 1

G LED-1 is designed for indoor area with a modern simplicity style. The soft and un-dazzling light creates a cozy and stress-free atmosphere. it is suitable for leisure spaces and hospitality places.
  • IP20
  • Meets CE safety standards, Rohs compliant
  • CB
  • IECEE
G LED 1G LED 1G LED 1G LED 1G LED 1G LED 1
Datasheet

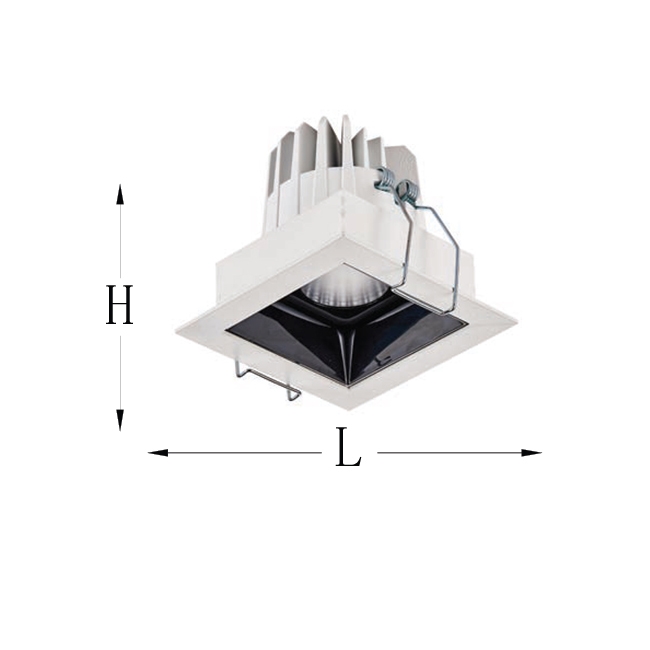

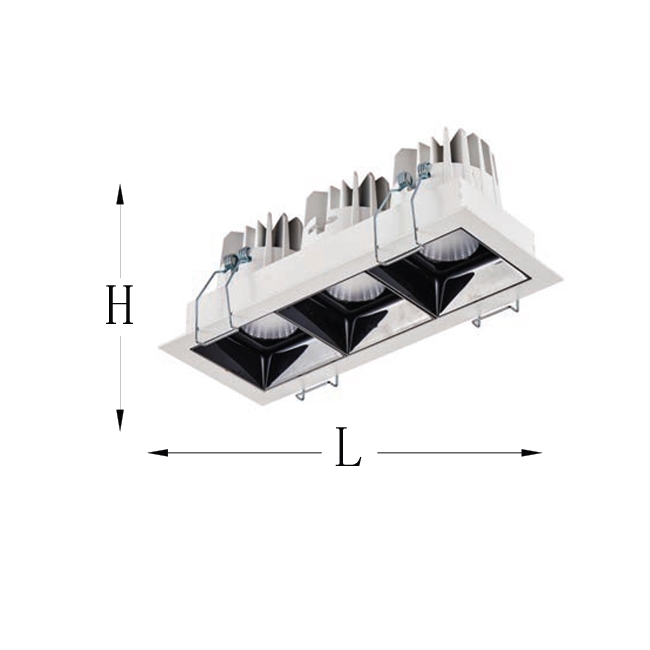

Drawing
Photometric
General Specifications
Application
Showrooms, Leisure spaces, Hospitality, Villas, Hotels, Restaurants
Product Type
Recessed Downlight
Notes
On/Off built-in driver included as a standard, 0-10 and DALI dimmable Driver as an optional.
Available 3 hours emergency kit as an optional
Technical Data
Mounting
Recessed Mounted
Material
Die-cast aluminum
Body Color
White
Finish
White/Black
Diffuser
PMMA
IP Protection
IP20
Ambient temperature
Ta -20°C - Ta +45°C

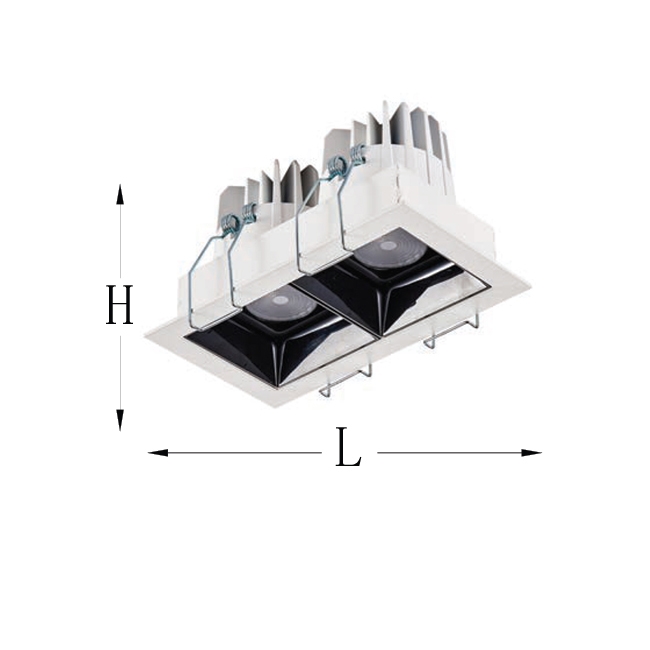

Dimensions
Dimensions (mm)
available in different Dimensions
Height (mm)
88, 86
Cut-out (mm)
80x80, 148x80, 218x80
Length (mm)
97, 166, 236
Width (mm)
87, 97
Optical Data
Light Source
COB LED
Wattage
10W, 20W, 30W
Gross luminous flux (lm)
1000, 2000, 3000
Delivered Output (lm)
830, 1700, 2600
Light Distribution
15°, 30°, 45°
Color Rendering Index
Ra> 80
Color Temperature (CCT)
3000K, 4000K
Power factor
>0.90
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Driver Mounting
Remote

Ordering Code

CodeDimensions (mm)Cut-out size (mm)WattageGross luminous flux (lm)Delivered Output (lm)CCT (K)
RAY-G LED1 -REC GDL-80X80MM-IP20-10W97*86*9780*8010W10008303000,4000
RAY-G LED1 -REC GDL-148X80MM-IP20-2X10W97*86*166148*8020W200017003000,4000
RAY-G LED1 -REC GDL-80X80MM-IP20-3X10W97*86*236218*8030W300026003000,4000

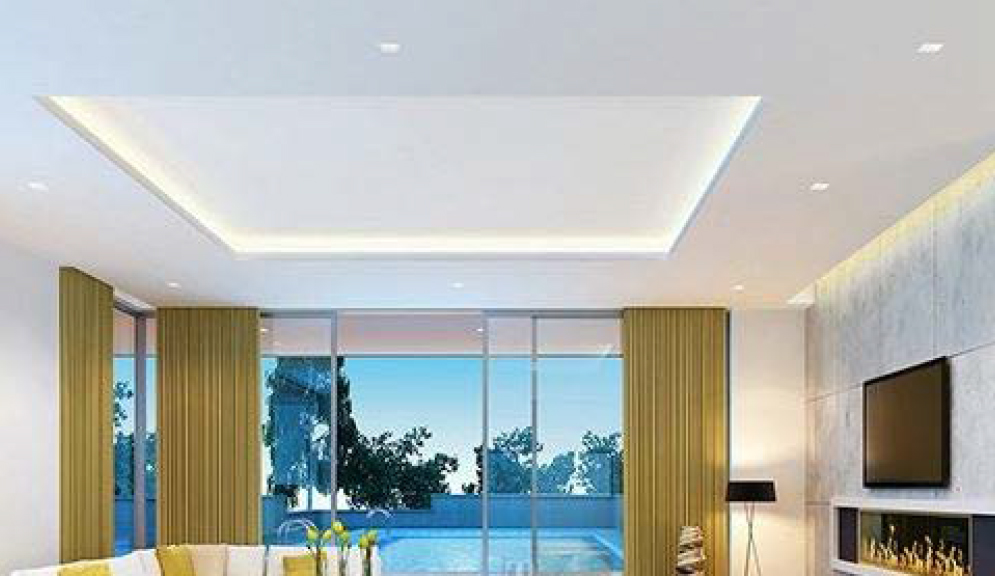

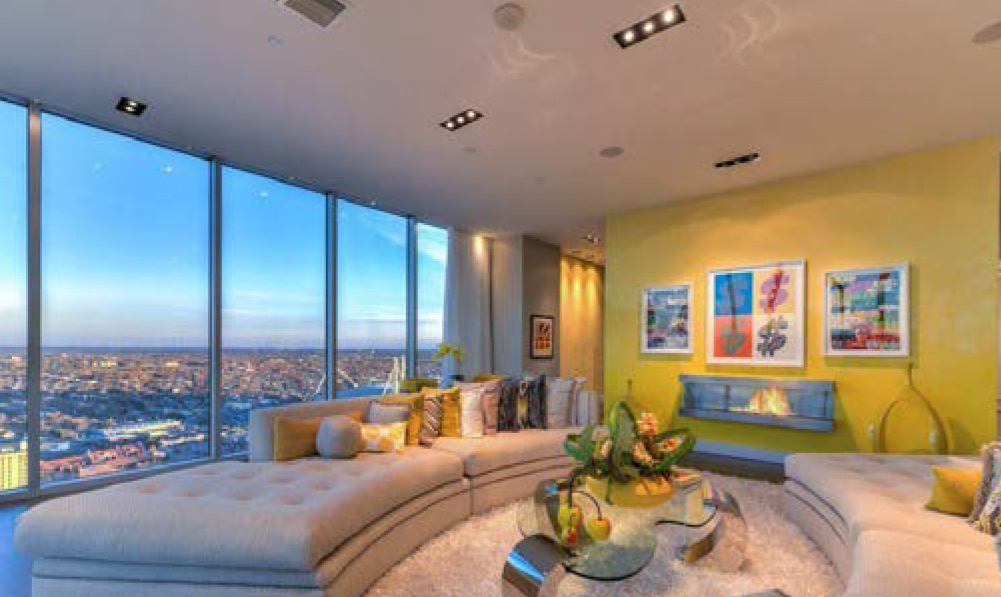

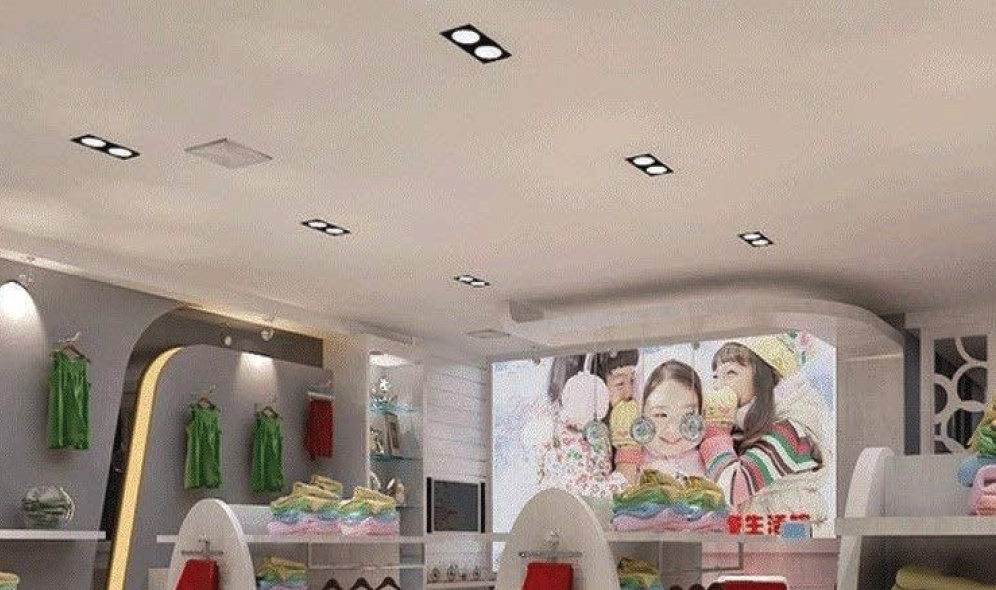

Ambient image

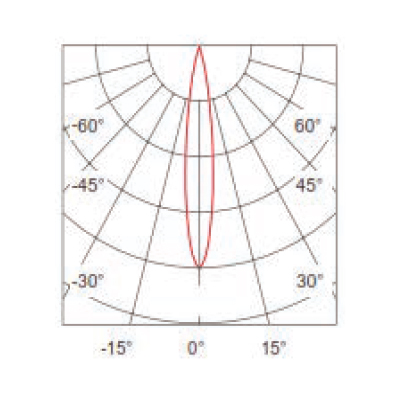

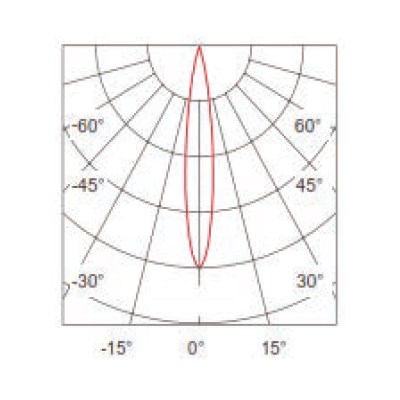

Photometric
